This Simple Programmable Logic Device (SPLD) offers 250 gates and 8 macrocells, operating at a 125MHz frequency with a 7ns access time. Featuring a 20-pin DIP package for through-hole mounting, it supports a 5V supply voltage and operates within a -40°C to 85°C temperature range. The device is RoHS compliant and designed for reliable performance.
Frequency125MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip ATF16V8C-7PU technical specifications.
General
Access Time
7ns
Package/Case
DIP
Frequency
125MHz
Height
4.953mm
Lead Free
Lead Free
Length
26.92mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
130mA
Max Supply Voltage
5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Gates
250
Number of I/Os
8
Number of Macro Cells
8
Number of Macrocells
8
Packaging
Rail/Tube
Propagation Delay
7.5ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
16V8
Turn-On Delay Time
7.5ns
Width
7.112mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATF16V8C-7PU Datasheet
Download the complete datasheet for Microchip ATF16V8C-7PU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

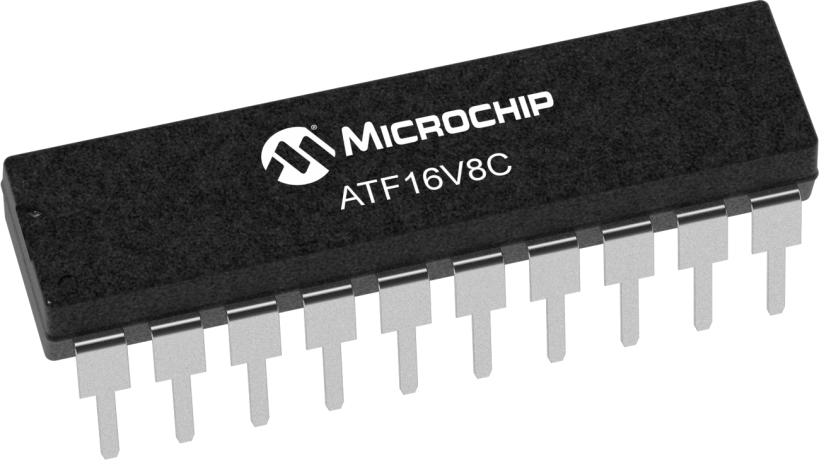

Product Images
