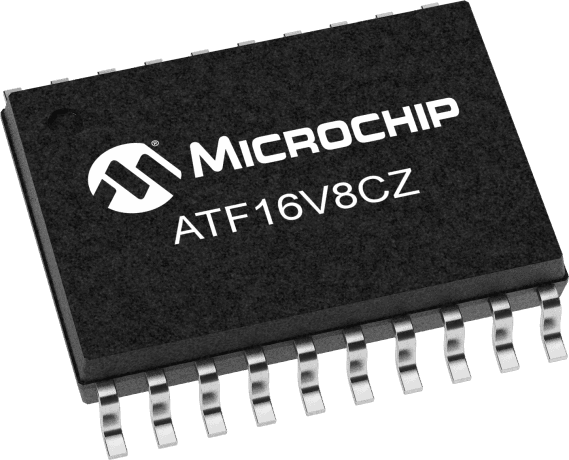

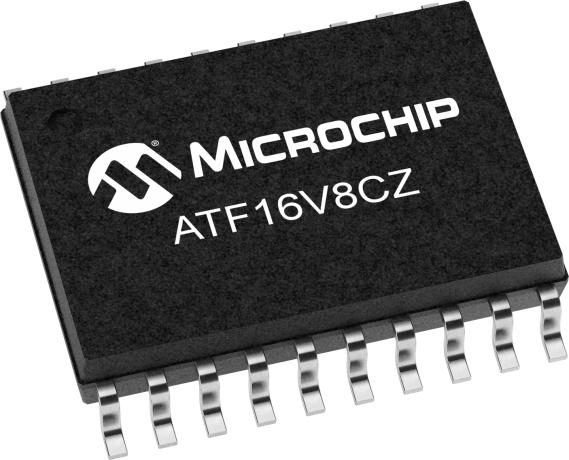

The ATF16V8CZ-15XU is a 16V8 SPLD from Microchip, operating at frequencies up to 62MHz. It features 8 I/Os and 8 macro cells. The device is packaged in a TSSOP and is RoHS compliant. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The ATF16V8CZ-15XU is lead free and has a maximum supply current of 105mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATF16V8CZ-15XU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 15ns |
| Package/Case | TSSOP |
| Frequency | 62MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 105mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Gates | 150 |
| Number of I/Os | 8 |
| Number of Macro Cells | 8 |
| Number of Macrocells | 8 |
| Packaging | Rail/Tube |
| Propagation Delay | 15ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 16V8 |
| RoHS | Compliant |
