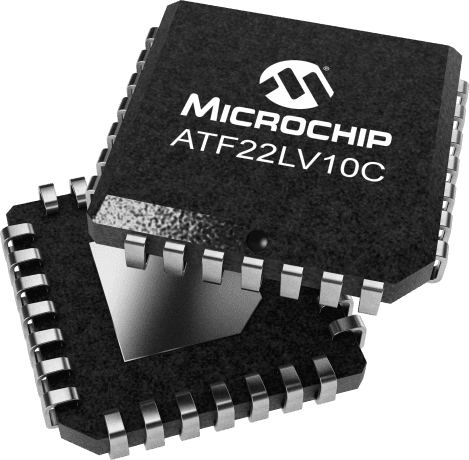

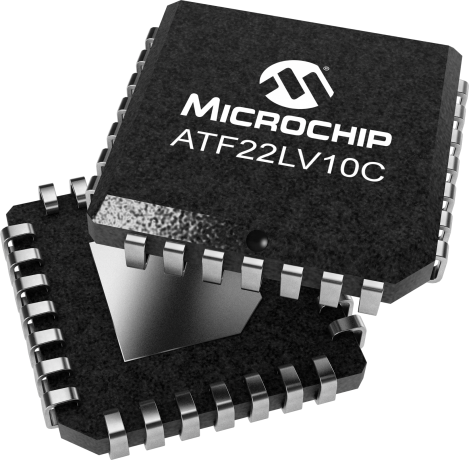

High-performance Simple Programmable Logic Device (SPLD) featuring 500 gates and 10 macrocells. Operates at a maximum frequency of 83.3MHz with a 10ns access time. Supports dual voltage operation from 3V to 5.5V, with a maximum supply current of 90mA. Packaged in a 28-pin PLCC for surface mounting, this RoHS compliant component is designed for demanding applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATF22LV10C-10JU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 10ns |
| Package/Case | PLCC |
| Frequency | 83.3MHz |
| Height | 4.572mm |
| Lead Free | Lead Free |
| Length | 11.58mm |
| Max Frequency | 83.3MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 90mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 500 |
| Number of I/Os | 10 |
| Number of Macro Cells | 10 |
| Number of Macrocells | 10 |
| Packaging | Rail/Tube |
| Propagation Delay | 10ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 22V10 |
| Supply Current | 90mA |
| Turn-On Delay Time | 10ns |
| Width | 11.582mm |
| RoHS | Compliant |
