Microchip

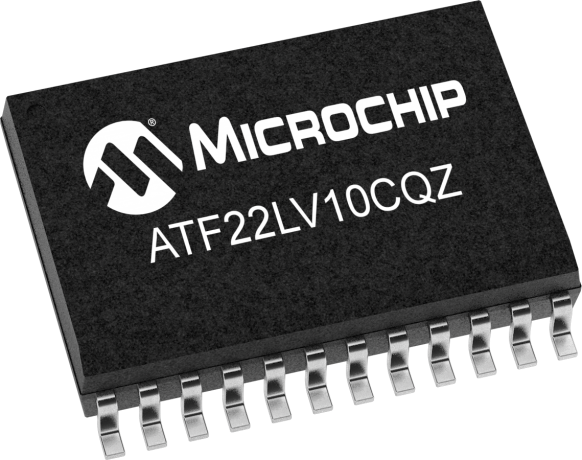

ATF22LV10CQZ-30SU
SPLD ATF22LV10C Family 500 Gates 10 Macro Cells 33.3MHz CMOS Technology 3.3V/5V 24-Pin SOIC Tube
Frequency33.3MHz
PackageSOIC
Current19mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATF22LV10CQZ-30SU technical specifications.
General
Access Time
30ns
Package/Case
SOIC
Frequency
33.3MHz
Lead Free
Lead Free
Max Frequency
33.3MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
60mA
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
10
Number of Macrocells
10
Package Quantity
31
Packaging
Rail/Tube
Propagation Delay
30ns
RoHS Compliant
Yes
Series
22V10
Supply Current
19mA
Compliance
RoHS
Compliant
