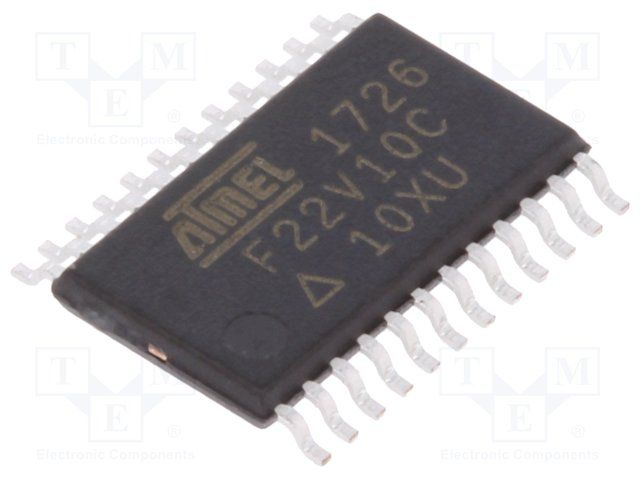

The ATF22V10C-10XU is a 5V microcontroller with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It features a 10ns access time and a 125MHz frequency. The device is packaged in a TSSOP package type and is mounted using surface mount technology. It is RoHS compliant and has a maximum supply current of 140mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATF22V10C-10XU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 10ns |
| Package/Case | TSSOP |
| Frequency | 125MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 140mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of I/Os | 10 |
| Number of Macrocells | 10 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Propagation Delay | 10ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 22V10 |
| RoHS | Compliant |
Download the complete datasheet for Microchip ATF22V10C-10XU to view detailed technical specifications.
