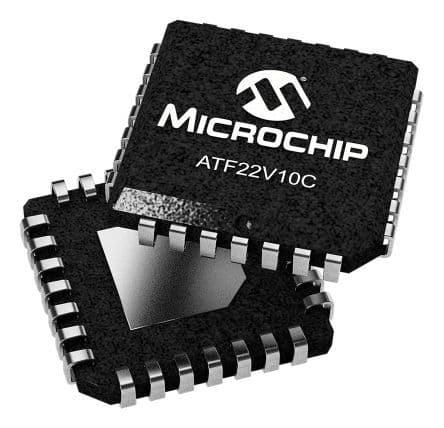

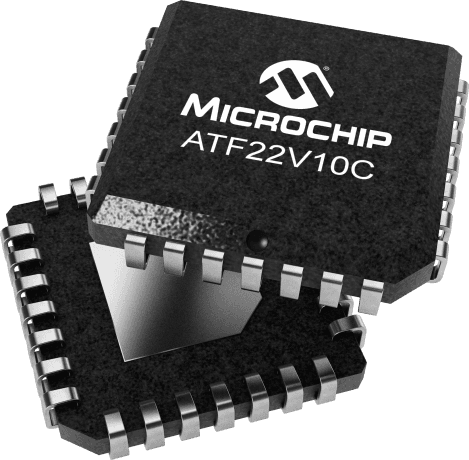

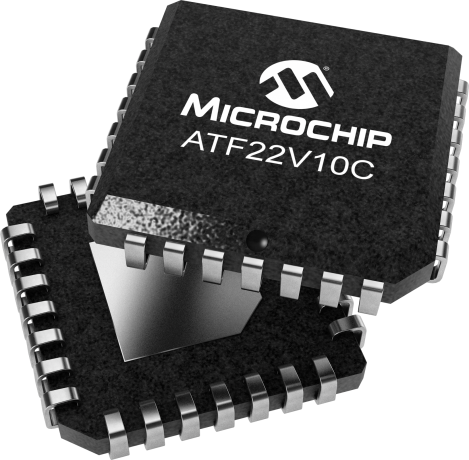

Programmable Logic Device (PLD) featuring 10 macrocells and 10 I/Os, operating at a maximum frequency of 83.3MHz with a 15ns propagation delay. This surface mount component is housed in a 28-pin PLCC package and supports a 5V operating supply voltage, with a range of 4.5V to 5.5V. It offers a maximum supply current of 115mA and operates within a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATF22V10C-15JU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PLCC |
| Frequency | 83.3MHz |
| Height | 4.572mm |
| Lead Free | Lead Free |
| Length | 11.58mm |
| Max Frequency | 83.3MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 115mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Gates | 500 |
| Number of I/Os | 10 |
| Number of Macro Cells | 10 |
| Number of Macrocells | 10 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Propagation Delay | 15ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 22V10 |
| Turn-On Delay Time | 15ns |
| Width | 11.582mm |
| RoHS | Compliant |
