Programmable Logic Device (PLD) with 10 macrocells and 10 I/Os, featuring a 20ns access time and 50MHz maximum frequency. This through-hole mounted component operates at 5V supply voltage with a maximum supply current of 80mA. It is RoHS compliant and housed in a 24-pin PDIP package with tin, matte contact plating. The device offers a temperature range of -40°C to 85°C.
Frequency50MHz
PackagePDIP
Current80mA
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip ATF22V10CQZ-20PU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip ATF22V10CQZ-20PU technical specifications.
General
| Access Time | 20ns |
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Frequency | 50MHz |
| Height | 4.95mm |
| Lead Free | Lead Free |
| Length | 32.3mm |
| Max Frequency | 50MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 80mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Gates | 500 |
| Number of I/Os | 10 |
| Number of Inputs | 12 |
| Number of Macro Cells | 10 |
| Number of Macrocells | 10 |
| Number of Outputs | 10 |
| Operating Supply Current | 80mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Propagation Delay | 20ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 22V10 |
| Speed Grade | 20 |
| Supply Current | 80mA |
| Turn-On Delay Time | 20ns |
| Weight | 0.131925oz |
| Width | 7.11mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATF22V10CQZ-20PU Datasheet
Download the complete datasheet for Microchip ATF22V10CQZ-20PU to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

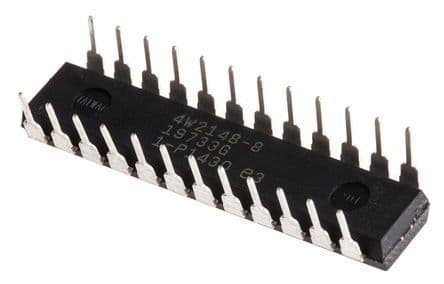

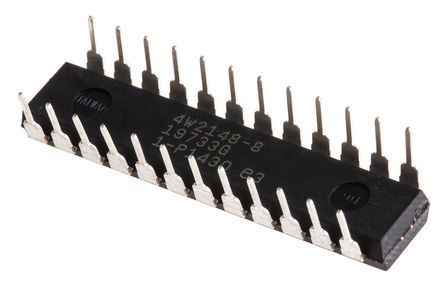

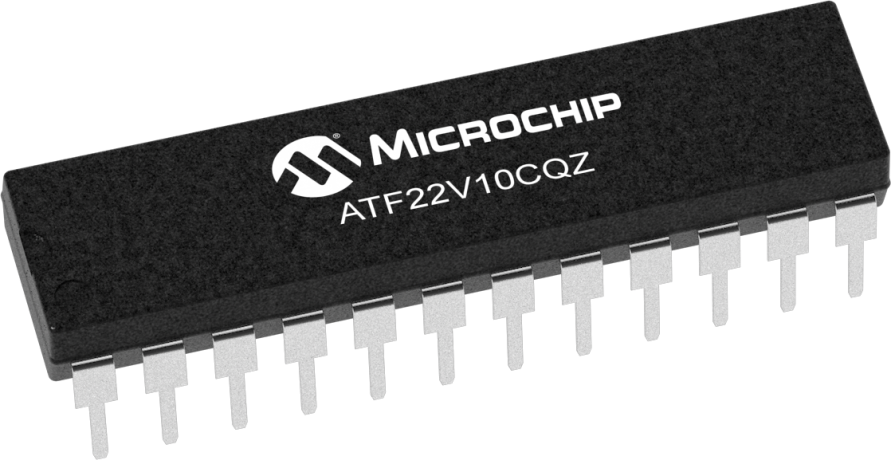

Product Images
