Complex Programmable Logic Device (CPLD) with 2.5K gates and 24 macro cells, operating at up to 83MHz. Features a 5V supply voltage range (4.5V to 5V), 24 I/Os, and a 15ns propagation delay. This surface mount device is packaged in a 44-pin PLCC and is RoHS compliant. It operates within a temperature range of -40°C to 85°C.
Frequency83MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATF2500C-15JU technical specifications.
General
Package/Case
PLCC
Frequency
83MHz
Height
4.06mm
Lead Free
Lead Free
Length
16.66mm
Max Operating Temperature
85°C
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Max Supply Voltage
5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of I/Os
24
Number of Macro Cells
24
Number of Macrocells
24
Packaging
Rail/Tube
Propagation Delay
15ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ATF2500C(L)
Turn-On Delay Time
15ns
Width
16.66mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATF2500C-15JU Datasheet
Download the complete datasheet for Microchip ATF2500C-15JU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

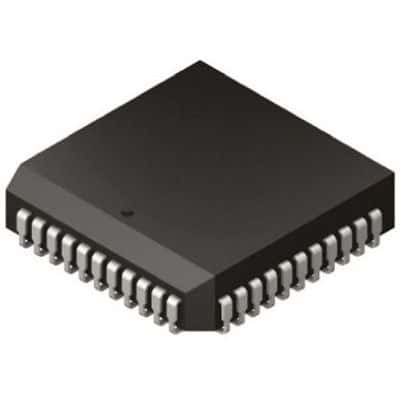

Product Images
