The ATMEGA128-16MN is a 16MHz AVR microcontroller with 128KB of FLASH memory and 53 I/Os. It features a QFN package and supports various interfaces including I2C, SPI, UART, and USART. The device operates within a temperature range of -40°C to 105°C and is supplied with a voltage between 4.5V and 5.5V. It is compliant with RoHS regulations and is available in a tray packaging.
Frequency16MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA128-16MN technical specifications.
General
| Package/Case | QFN |
| Core Architecture | AVR |
| Frequency | 16MHz |
| Interface | I2C, SPI, UART, USART, EBI/EMI |
| Max Operating Temperature | 105°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of I/Os | 53 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RoHS Compliant | Yes |
| Series | AVR® ATmega |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATMEGA128-16MN Datasheet
Download the complete datasheet for Microchip ATMEGA128-16MN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

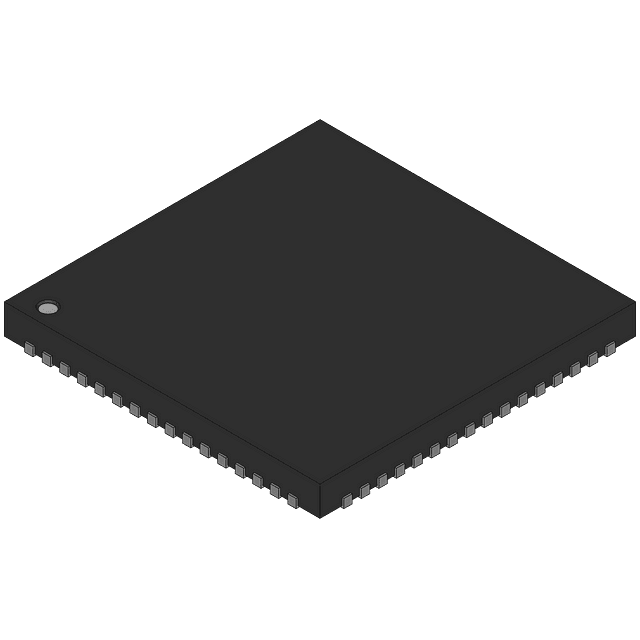

Product Images
