8-bit AVR microcontroller featuring 128KB FLASH memory and 8KB RAM. Operates at up to 16MHz with an 8b data bus. Offers 86 I/Os, 16 ADC channels, and 16 PWM channels. Supports I2C, SPI, UART, USART, and EBI/EMI interfaces. Packaged in a 100-TQFP surface mount case, operating from 2.7V to 5.5V.
Frequency16MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA1280-16AU technical specifications.
General
Access Time
16us
Package/Case
A
Core Architecture
AVR
Data Bus Width
8b
Density
128KB
Frequency
16MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, EBI/EMI, 2-Wire
Lead Free
Lead Free
Length
14.1mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of ADC Channels
16
Number of Bits
8
Number of I/Os
86
Number of I2C Channels
1
Number of PWM Channels
16
Number of SPI Channels
1
Number of Timers/Counters
6
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Termination
SMD/SMT
Watchdog Timer
Yes
Width
14.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA1280-16AU Datasheet
Download the complete datasheet for Microchip ATMEGA1280-16AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

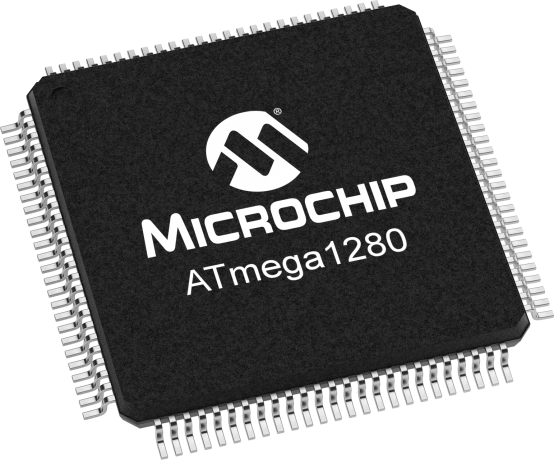

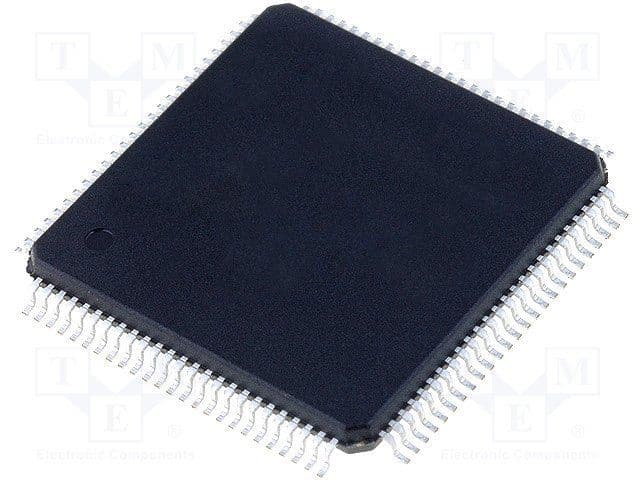

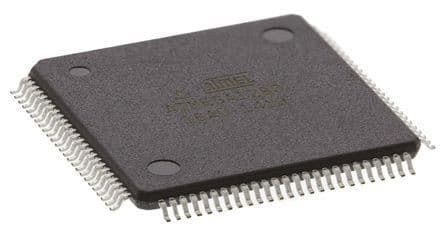

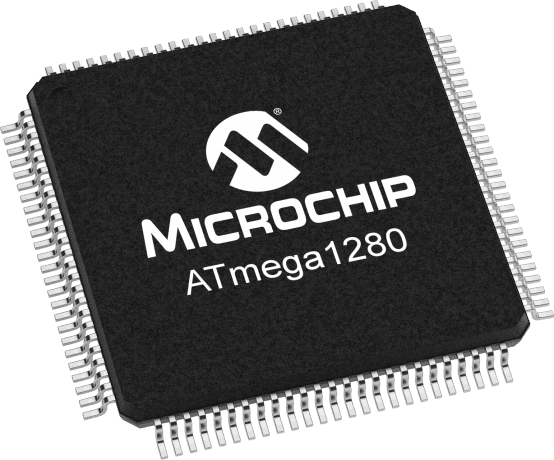

Product Images
