8-bit AVR microcontroller featuring 128KB FLASH memory and 4KB RAM. Operates at up to 8MHz with an 8us access time. Offers 53 I/O lines, 8 ADC channels, and 8 PWM channels. Supports I2C, SPI, UART, USART, and EBI/EMI interfaces. Packaged in a 64-pin QFN (VQCCN) for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency8MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA128L-8MU technical specifications.
General
Access Time
8us
Package/Case
QFN
Core Architecture
AVR
Data Bus Width
8b
Density
128KB
Frequency
8MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART, EBI/EMI
Lead Free
Lead Free
Length
9.1mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Moisture Sensitivity Level
3
Mount
Surface Mount
Number of ADC Channels
8
Number of Bits
8
Number of I/O Lines
53
Number of I/Os
53
Number of I2C Channels
1
Number of PWM Channels
8
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
Internal
Package Code
VQCCN
Package Shape
Square
Packaging
Tray
Peak Reflow Temperature (Cel)
260°C
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Finish
Tin
Terminal Form
No Lead
Terminal Position
QUAD
Termination
SMD/SMT
Time @ Peak Reflow Temperature-Max (s)
40s
Watchdog Timer
Yes
Width
9.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA128L-8MU Datasheet
Download the complete datasheet for Microchip ATMEGA128L-8MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

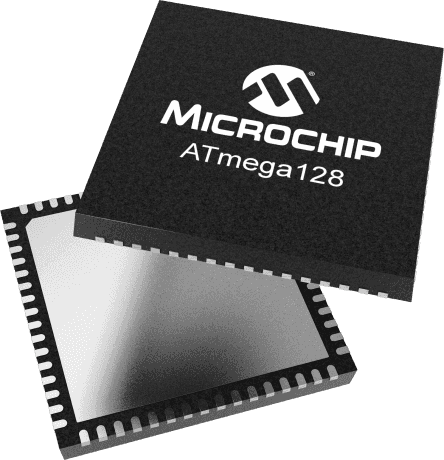

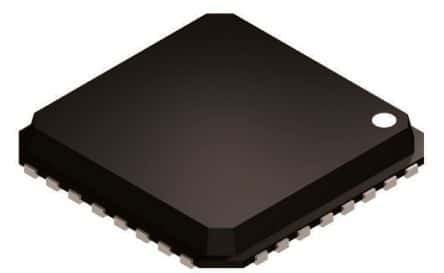

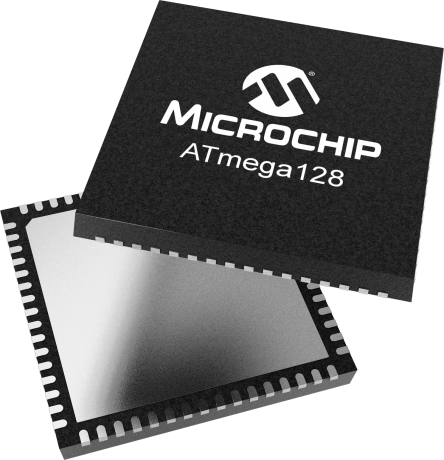

Product Images
