8-bit AVR microcontroller featuring 16KB FLASH memory and 1KB RAM. Operates at up to 16MHz with an 8-bit data bus width. Offers I2C, SPI, and UART interfaces, 32 I/O pins, and 8 ADC channels. Includes 3 timers/counters and 4 PWM channels. Packaged in a 44-pin VQFN for surface mounting, with an operating voltage range of 4.5V to 5.5V and an operating temperature range of -40°C to 85°C.
Frequency16MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA16-16MU technical specifications.
General
Access Time
16us
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Density
16KB
Frequency
16MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
7.1mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
32
Number of I2C Channels
1
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Termination
SMD/SMT
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA16-16MU Datasheet
Download the complete datasheet for Microchip ATMEGA16-16MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

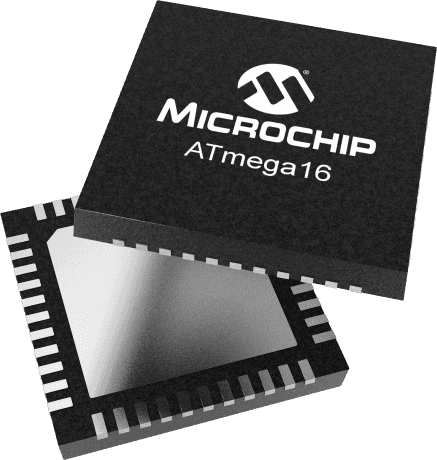

Product Images
