8-bit AVR microcontroller featuring 16MHz clock speed, 16KB Flash program memory, and 1KB RAM. This through-hole component offers 32 I/O pins, 8 ADC channels, and integrated peripherals including POR, PWM, and WDT. Operating voltage ranges from 4.5V to 5.5V, with an operating temperature range of -40°C to 85°C. Includes 3 timers/counters, 1 I2C, and 1 SPI interface.
Frequency16MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip ATMEGA16-16PU technical specifications.
General
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Height
4.445mm
Length
52.58mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
512B
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Through Hole
Number of ADC Channels
8
Number of I/Os
32
Number of I2C Channels
1
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Viewing Angle
30°
Watchdog Timer
Yes
Width
13.97mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA16-16PU Datasheet
Download the complete datasheet for Microchip ATMEGA16-16PU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

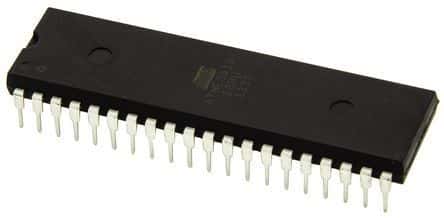

Product Images
