8-bit AVR microcontroller featuring 16KB Flash memory and 1KB RAM. Operates at up to 8MHz with an 8-bit data bus width. Offers 35 I/Os, 6 PWM channels, 4 timers/counters, and SPI, UART, USART, EBI/EMI interfaces. Packaged in a 44-VQFN (7.1mm x 7.1mm x 1mm) for surface mounting. Supports a supply voltage range of 1.8V to 5.5V and operates from -40°C to 85°C.
Frequency8MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA162V-8MU technical specifications.
General
Access Time
8us
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Density
16KB
Frequency
8MHz
Height
1mm
Interface
SPI, UART, USART, EBI/EMI
Lead Free
Lead Free
Length
7.1mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
35
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Termination
SMD/SMT
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA162V-8MU Datasheet
Download the complete datasheet for Microchip ATMEGA162V-8MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

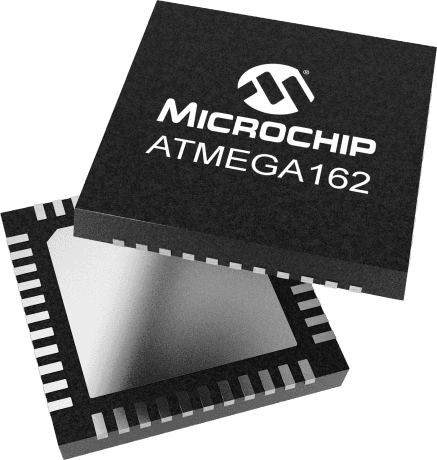

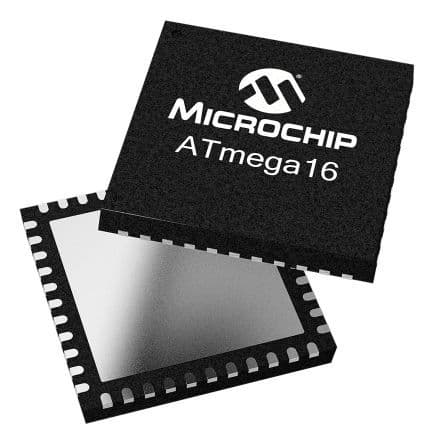

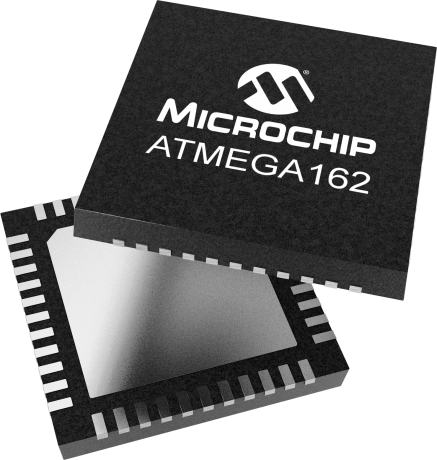

Product Images
