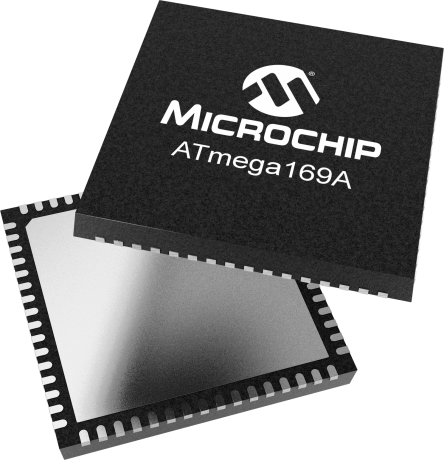

The ATMEGA169A-MU is a surface-mount microcontroller with an 8-bit AVR core, operating within a temperature range of -40°C to 85°C. It features 16KB of FLASH memory and 1KB of RAM, with a maximum supply voltage of 5.5V and a minimum supply voltage of 1.8V. The device supports SPI, UART, and USART interfaces, and includes peripherals such as brown-out detect/reset, power-on reset, pulse-width modulation, and a watchdog timer. It is RoHS compliant and packaged in a QFN EP format.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATMEGA169A-MU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN EP |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 16MHz |
| Interface | SPI, UART, USART |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 260 |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LCD |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| RoHS | Compliant |
