8-bit AVR microcontroller featuring 16KB FLASH memory and 1KB RAM. Operates at up to 8MHz with an 8-bit address and data bus. Offers 54 programmable I/O pins, 8 ADC channels, 4 PWM channels, and 3 timers/counters. Includes SPI, USART, UART, and I2C interfaces, along with LCD peripheral support. Packaged in a 64-pin TQFP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency8MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA169PV-8AU technical specifications.
General
Access Time
8us
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
AVR
Data Bus Width
8b
Density
16KB
Frequency
8MHz
Height
1.05mm
Interface
SPI, USART, UART
Lead Free
Lead Free
Length
14.1mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
54
Number of I2C Channels
1
Number of Programmable I/O
54
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
90
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Watchdog Timer
Yes
Width
14.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA169PV-8AU Datasheet
Download the complete datasheet for Microchip ATMEGA169PV-8AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

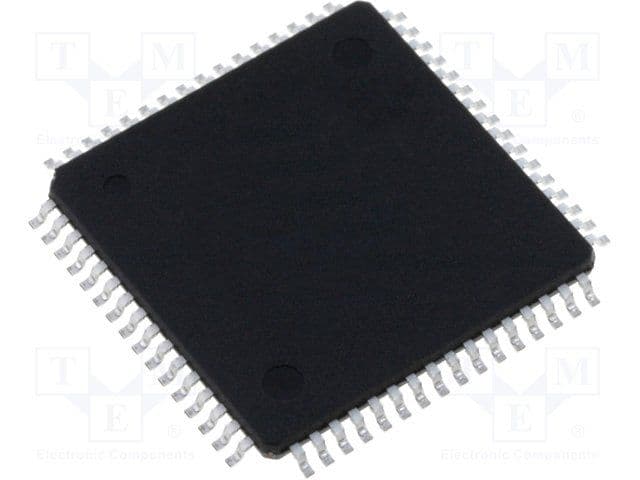

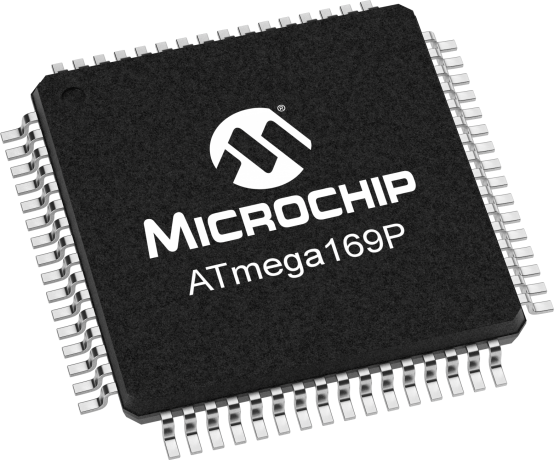

Product Images
