Technical Specifications
Microchip ATMEGA169PV-8AUR technical specifications.
General
Package/Case
TQFP
Core Architecture
AVR
Frequency
8MHz
Interface
SPI, UART, USART, I2C, Ethernet
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
54
Oscillator Type
Internal
Packaging
Cut Tape
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA169PV-8AUR Datasheet
Download the complete datasheet for Microchip ATMEGA169PV-8AUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

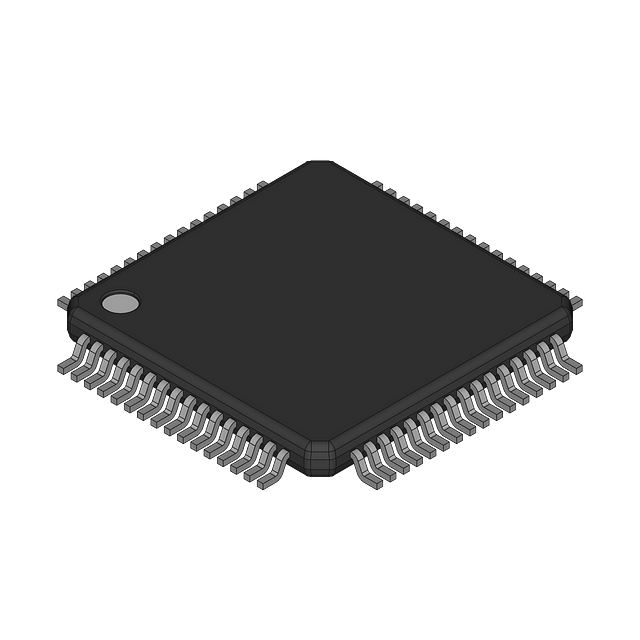

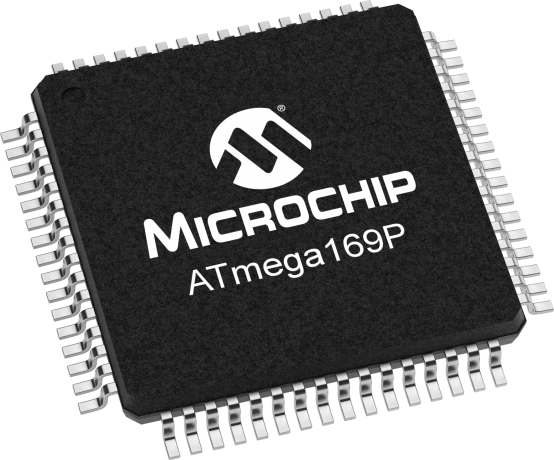

Product Images
