8-bit AVR microcontroller featuring 4KB FLASH memory and 512B RAM. Operates at up to 10MHz with an 8-bit data bus width. Offers I2C, SPI, and UART/USART interfaces, 23 programmable I/Os, and 3 timers/counters. Includes internal oscillator, brown-out detect/reset, POR, PWM, and WDT peripherals. Packaged in a QFN EP with gold contact plating for surface mounting, operating from 1.8V to 5.5V supply voltage and -40°C to 85°C temperature range.
Frequency10MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA48V-10MMUR technical specifications.
General
| Package/Case | QFN EP |
| Contact Plating | Gold |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 10MHz |
| Interface | I2C, SPI, UART, USART |
| Max Frequency | 10MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 4KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of I/Os | 23 |
| Number of Programmable I/O | 23 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 512B |
| RoHS Compliant | Yes |
| Series | AVR® ATmega |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATMEGA48V-10MMUR Datasheet
Download the complete datasheet for Microchip ATMEGA48V-10MMUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

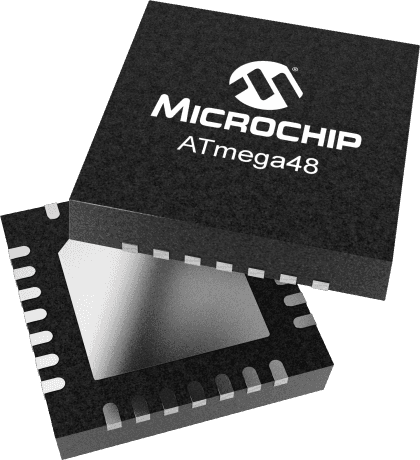

Product Images
