8-bit AVR RISC Microprocessor featuring 64KB Flash memory and 4KB RAM. Operates at up to 8MHz with an 8us access time. Offers 53 programmable I/Os and multiple interfaces including SPI, USART, and I2C. Internal oscillator and 4 timers/counters are integrated. Supports a wide operating voltage range of 2.7V to 5.8V and operates from -40°C to 85°C. Surface mount TQFP package.
Frequency8MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA64L-8AI technical specifications.
General
Access Time
8us
Package/Case
TQFP
Core Architecture
AVR
Data Bus Width
8b
Frequency
8MHz
Interface
SPI, USART, 2-Wire, I2C, UART
Lead Free
Contains Lead
Max Frequency
8MHz
Max Operating Temperature
85°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.8V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
53
Number of Programmable I/O
53
Number of Timers/Counters
4
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
4KB
RoHS Compliant
No
Series
AVR® ATmega
Compliance
RoHS
Not Compliant
Datasheet
Microchip ATMEGA64L-8AI Datasheet
Download the complete datasheet for Microchip ATMEGA64L-8AI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

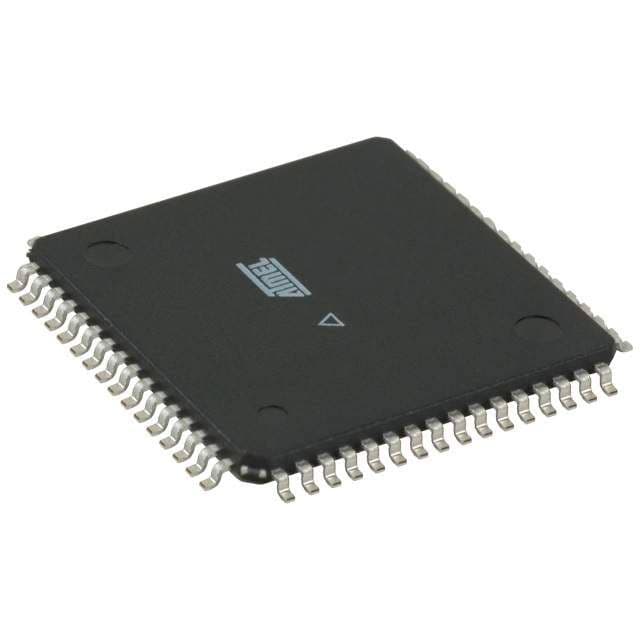

Product Images
