8-bit AVR microcontroller featuring 64KB FLASH memory and 4KB RAM. Operates at up to 8MHz with a 2.7V to 5.5V supply voltage. Offers 53 programmable I/Os and supports I2C, SPI, and UART interfaces. Includes 4 timers/counters, a watchdog timer, and peripherals like POR and PWM. Packaged in a 64-pin TQFP for surface mounting, with tin-matte contact plating and RoHS compliance.
Frequency8MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA64L-8AUR technical specifications.
General
Package/Case
TQFP
Contact Plating
Tin, Matte
Core Architecture
AVR
Data Bus Width
8b
Frequency
8MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
8MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
53
Number of Programmable I/O
53
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
AVR® ATmega
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA64L-8AUR Datasheet
Download the complete datasheet for Microchip ATMEGA64L-8AUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

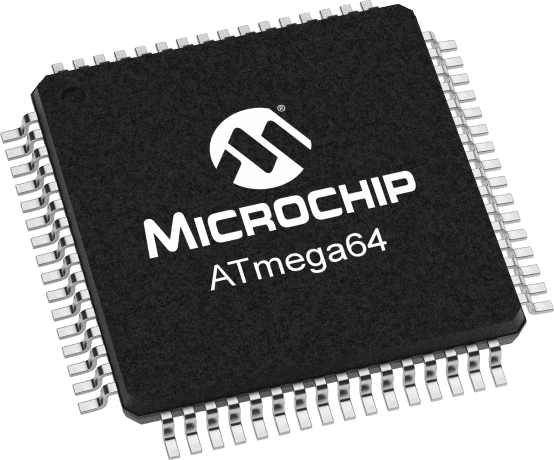

Product Images
