8-bit AVR microcontroller featuring 64KB FLASH memory. Integrated peripherals include SPI, UART, USART interfaces, Brown-out Detect/Reset, POR, PWM, WDT, and a Temp Sensor. Internal oscillator supports operation from -40°C to 85°C. Packaged in a 32-pin VQFN tray, this RoHS compliant component is part of the AVR ATmega series.
PackageVQFN
Quick Jump:
Technical Specifications
Microchip ATMEGA64M1-MU technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | AVR |
| Interface | SPI, UART, USART |
| Max Operating Temperature | 85°C |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor |
| RoHS Compliant | Yes |
| Series | AVR® ATmega |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATMEGA64M1-MU Datasheet
Download the complete datasheet for Microchip ATMEGA64M1-MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

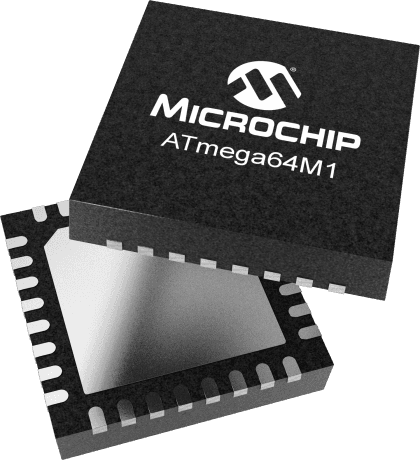

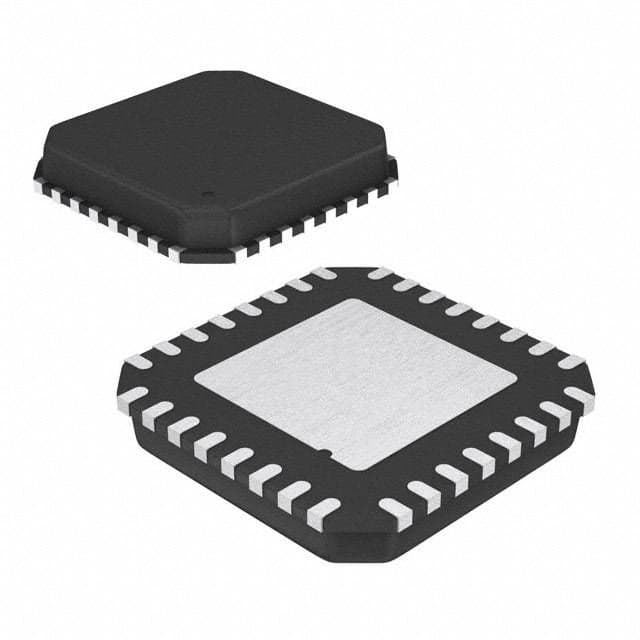

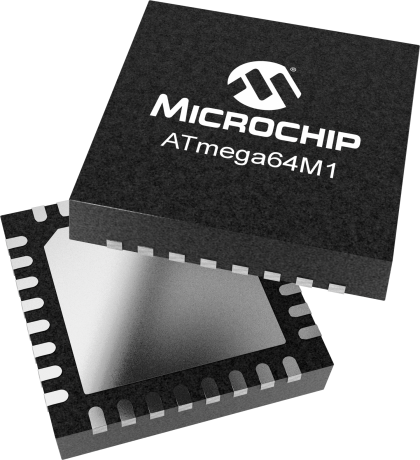

Product Images
