8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 16MHz with an 8-bit data bus width. Offers 35 programmable I/Os, 3 PWM channels, 2 timers/counters, and SPI, UART, USART, and EBI/EMI interfaces. Packaged in a 44-pin VQFN for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency16MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA8515-16MU technical specifications.
General
Access Time
16us
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Height
0.95mm
Interface
SPI, UART, USART, EBI/EMI
Lead Free
Lead Free
Length
7.1mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of I/Os
35
Number of Programmable I/O
35
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
360
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA8515-16MU Datasheet
Download the complete datasheet for Microchip ATMEGA8515-16MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

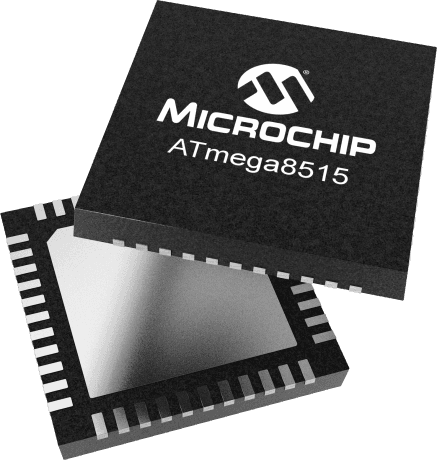

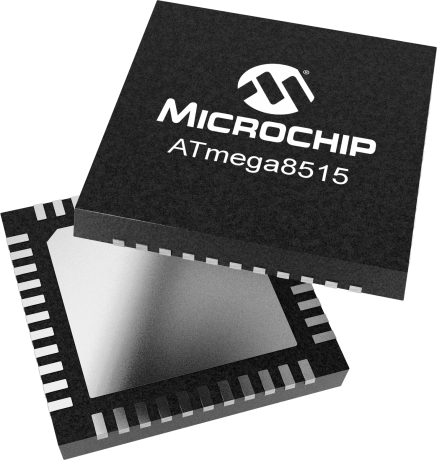

Product Images
