8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 16MHz with an 8-bit data bus. Offers 32 I/O pins, 8 ADC channels, and 4 PWM channels. Supports I2C, SPI, and UART interfaces. Packaged in a 44-pin PLCC for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency16MHz
PackageJ
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA8535-16JU technical specifications.
General
Package/Case
J
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Height
4.064mm
Interface
I2C, SPI, UART, USART
Length
16.66mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
32
Number of I2C Channels
1
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Width
16.662mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA8535-16JU Datasheet
Download the complete datasheet for Microchip ATMEGA8535-16JU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

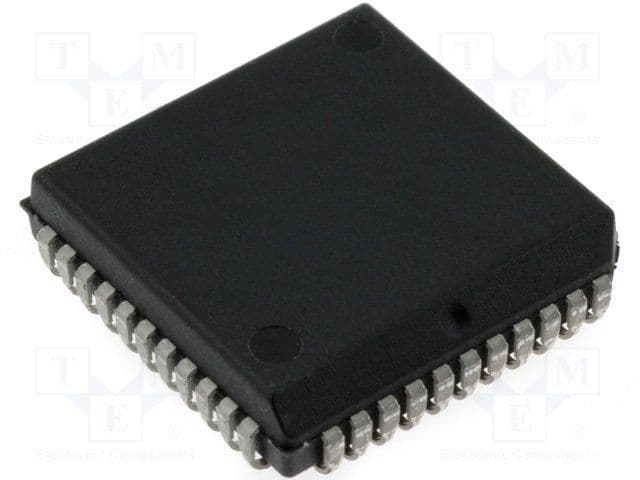

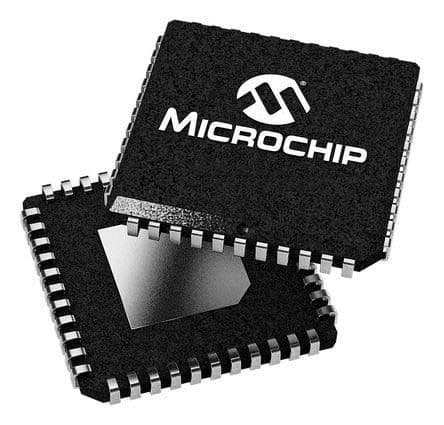

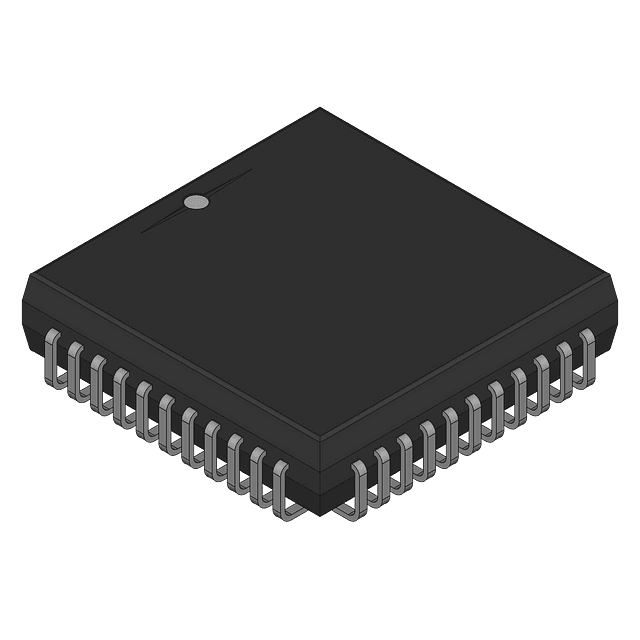

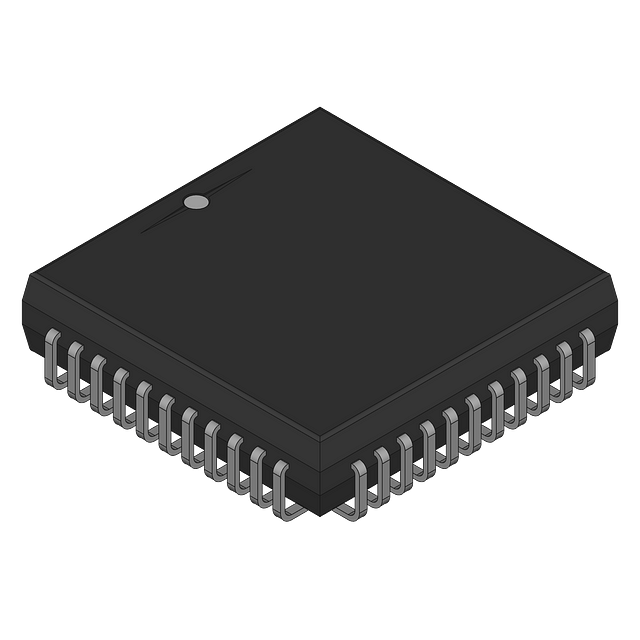

Product Images
