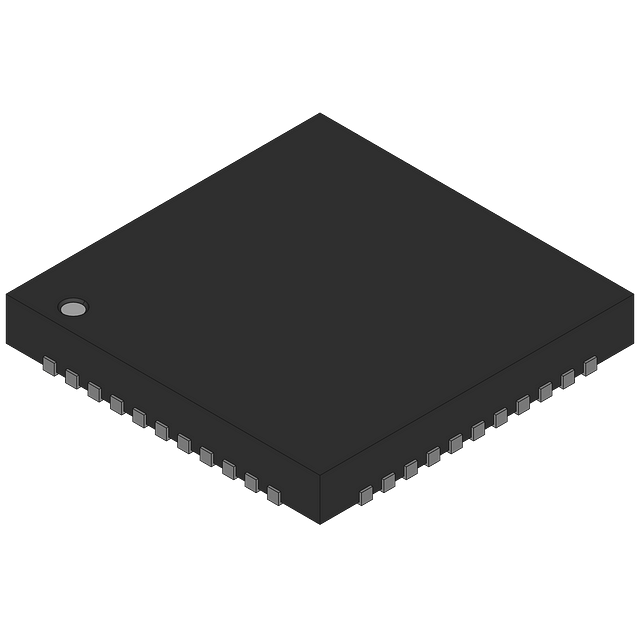

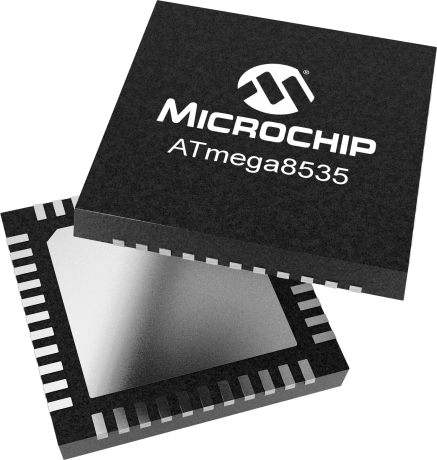

8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 16MHz with an 8b data bus width. Offers 32 I/Os, 8 ADC channels, and 4 PWM channels. Supports I2C, SPI, and UART interfaces. Packaged in a 44-pin VQFN for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency16MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA8535-16MU technical specifications.
General
Access Time
16us
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
7.1mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
32
Number of I2C Channels
1
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATmega
Width
7.1mm
Compliance
RoHS
Compliant
