Technical Specifications
Microchip ATMEGA8A-AN technical specifications.
General
Package/Case
TQFP
Core Architecture
AVR
Frequency
16MHz
Height
1.2mm
Interface
I2C, SPI, UART, USART
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
3.6mA
Number of ADC Channels
8
Number of I/Os
23
Number of PWM Channels
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
1
Packaging
Cut Tape
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RoHS Compliant
Yes
Series
AVR® ATmega
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA8A-AN Datasheet
Download the complete datasheet for Microchip ATMEGA8A-AN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

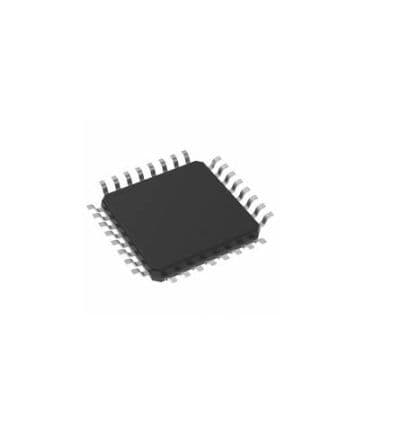

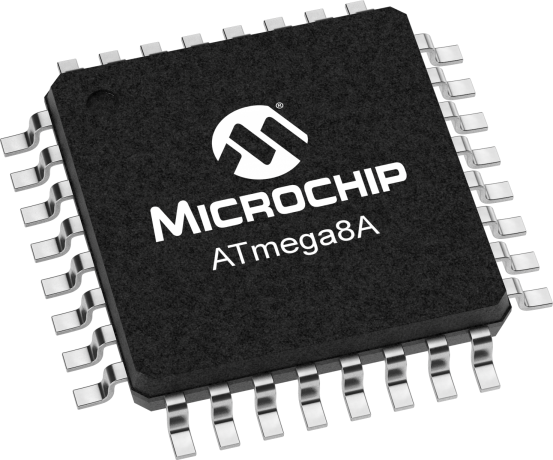

Product Images
