8-bit AVR microcontroller with 8KB FLASH memory and 1KB RAM. Features an 8MHz internal oscillator, 23 programmable I/Os, and 3 timers/counters. Operates with a supply voltage range of 2.7V to 5.5V and supports SPI, USART, 2-Wire, I2C, and UART interfaces. Includes peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a VQFN surface mount case, suitable for industrial temperature ranges from -40°C to 85°C.
Frequency8MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA8L-8MI technical specifications.
General
Access Time
8us
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Frequency
8MHz
Interface
SPI, USART, 2-Wire, I2C, UART
Lead Free
Contains Lead
Max Frequency
8MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
23
Number of Programmable I/O
23
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
490
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1KB
RoHS Compliant
No
Series
AVR® ATmega
Compliance
RoHS
Not Compliant
Datasheet
Microchip ATMEGA8L-8MI Datasheet
Download the complete datasheet for Microchip ATMEGA8L-8MI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

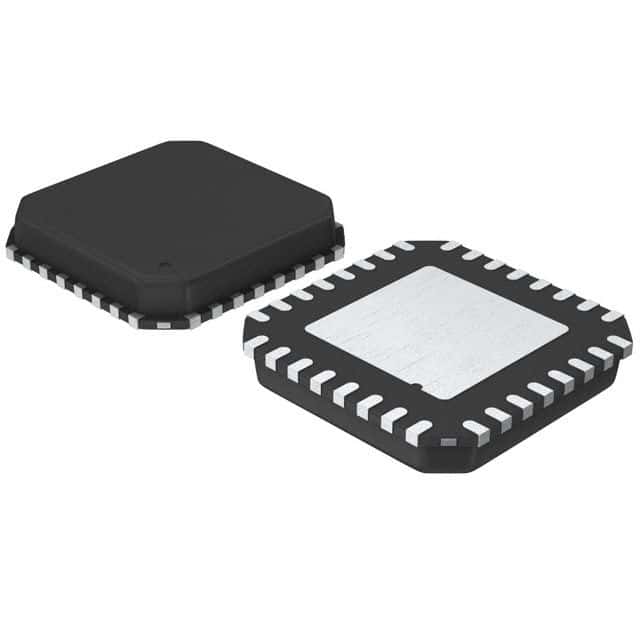

Product Images
