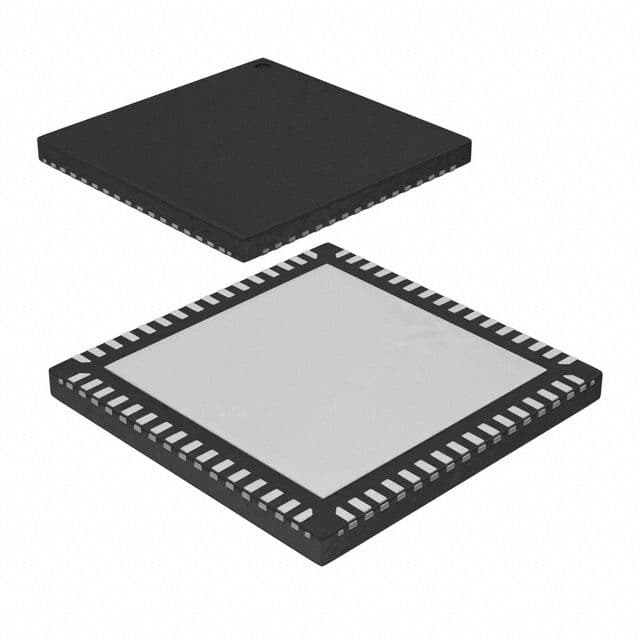

The ATSAM3S2BA-MU is a 64MHz ARM microcontroller with 128KB of FLASH memory and 32KB of RAM. It operates within a temperature range of -40°C to 85°C and can supply voltage between 1.62V and 3.6V. The device is packaged in a QFN-64 package and is compliant with RoHS regulations. It features a range of peripherals, including a watchdog timer, DMA, and PWM.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATSAM3S2BA-MU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip ATSAM3S2BA-MU technical specifications.
| Package/Case | QFN |
| Core Architecture | ARM |
| Frequency | 64MHz |
| Interface | I2C, SPI, USB, MMC, UART, USART |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.62V |
| Number of I/Os | 47 |
| Operating Supply Voltage | 1.95V |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RAM Size | 32KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SAM3S |
| Watchdog Timer | Yes |
| RoHS | Compliant |
Download the complete datasheet for Microchip ATSAM3S2BA-MU to view detailed technical specifications.
