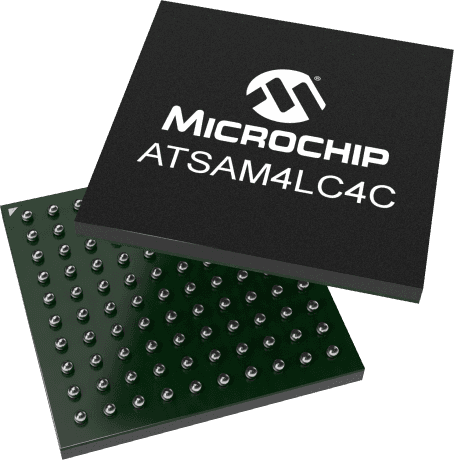

32-bit ARM Cortex-M4 microcontroller featuring 256KB FLASH and 32KB RAM. Operates at up to 48MHz with a 1.68V to 3.6V supply voltage. Offers I2C, SPI, USART, USB, and UART interfaces, with 48 programmable I/Os and one timer/counter. Packaged in a VFBGA, surface-mount configuration.
Frequency48MHz
PackageVFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATSAM4LC4CA-CFU technical specifications.
General
Package/Case
VFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
48MHz
Interface
I2C, SPI, USART, USB, UART
Length
7mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.68V
Mount
Surface Mount
Number of I/Os
48
Number of Programmable I/O
48
Number of Timers/Counters
1
Operating Supply Voltage
3.3V
Package Quantity
260
Packaging
Tray
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
SAM4L
Compliance
RoHS
Compliant
