32-bit ARM microprocessor featuring a 536MHz core speed and 128KB RAM. This integrated circuit offers 160KB of ROM and FLASH memory, supporting a 32-bit data bus. It includes 12 ADC channels, 160 I/Os, and multiple communication interfaces such as 1 Ethernet, 3 I2C, 6 SPI, 7 UART, and 3 USB channels. Operating within a 1.08V to 1.32V supply voltage range, this LFBGA packaged component is RoHS compliant and operates from -40°C to 85°C.
Frequency536MHz
PackageLFBGA
Quick Jump:
Technical Specifications
Microchip ATSAMA5D31A-CU technical specifications.
General
Package/Case
LFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
536MHz
Height
1.1mm
Lead Free
Lead Free
Length
15.05mm
Max Frequency
536MHz
Max Operating Temperature
85°C
Memory Size
160KB
Memory Type
FLASH, , ROM
Min Operating Temperature
-40°C
Max Supply Voltage
1.32V
Min Supply Voltage
1.08V
Number of ADC Channels
12
Number of Cores
1
Number of Ethernet Channels
1
Number of I/Os
160
Number of I2C Channels
3
Number of PWM Channels
4
Number of SPI Channels
6
Number of Timers/Counters
7
Number of UART Channels
7
Number of USB Channels
3
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
128KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SAMA5D3
Watchdog Timer
Yes
Width
15.05mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATSAMA5D31A-CU Datasheet
Download the complete datasheet for Microchip ATSAMA5D31A-CU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

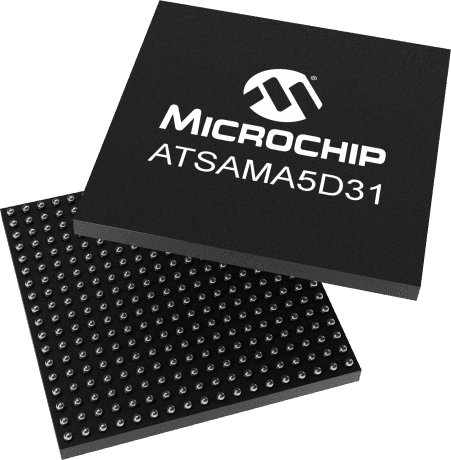

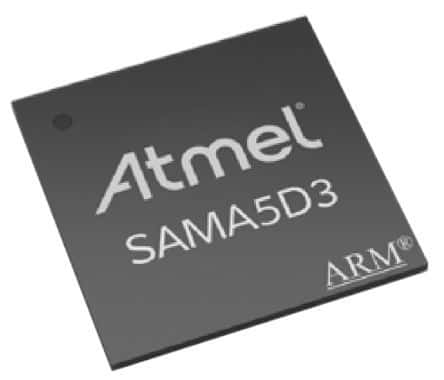

Product Images
