8-bit microcontroller featuring an AVR core architecture with an 8MHz clock frequency. Offers 1KB of FLASH program memory and 32 bytes of RAM, with an 8us access time. Includes 12 programmable I/O pins and a single timer/counter. This surface mount device operates within a 4V to 5.5V supply voltage range and supports SPI interface.
Frequency8MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY12-8SC technical specifications.
General
| Access Time | 8us |
| Package/Case | SOIC |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 8MHz |
| Interface | SPI |
| Lead Free | Contains Lead |
| Max Frequency | 8MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of I/Os | 6 |
| Number of Programmable I/O | 12 |
| Number of Timers/Counters | 1 |
| Oscillator Type | Internal |
| Package Quantity | 94 |
| Packaging | Rail/Tube |
| Peripherals | POR, WDT |
| RAM Size | 32B |
| RoHS Compliant | No |
| Series | AVR® ATtiny |
Compliance
| RoHS | Not Compliant |
Datasheet
Microchip ATTINY12-8SC Datasheet
Download the complete datasheet for Microchip ATTINY12-8SC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

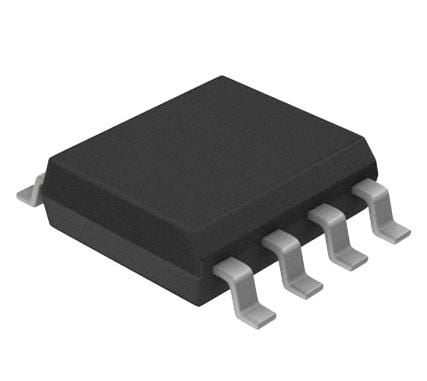

Product Images
