8-bit AVR microcontroller featuring 2KB FLASH memory and 128B RAM. Operates at up to 12MHz with an 8-bit data bus width. Offers I2C and SPI interfaces, 8 ADC channels, and 12 I/O pins. Includes 3 PWM channels and 2 timers/counters. Packaged in a 14-TSSOP surface mount configuration, operating from 1.8V to 5.5V supply voltage and a temperature range of -40°C to 85°C.
Frequency12MHz
PackageX
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY20-XU technical specifications.
General
Package/Case
X
Core Architecture
AVR
Data Bus Width
8b
Frequency
12MHz
Height
1.05mm
Interface
I2C, SPI
Lead Free
Lead Free
Length
5.1mm
Max Frequency
12MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
2KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
12
Number of I2C Channels
1
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATtiny
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATTINY20-XU Datasheet
Download the complete datasheet for Microchip ATTINY20-XU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

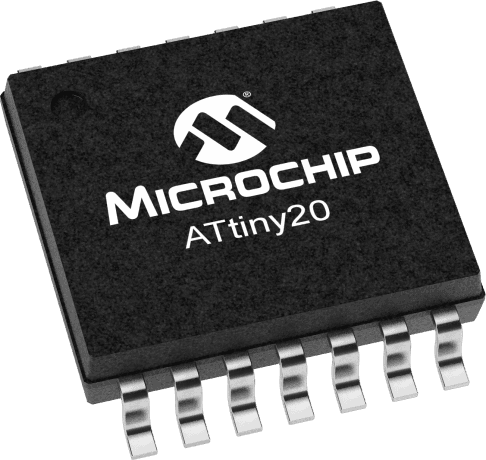

Product Images
