8-bit AVR microcontroller with 2KB FLASH memory and 128B RAM. Features an 8-bit AVR core operating up to 20MHz, with 18 I/Os, 2 PWM channels, 2 timers/counters, and multiple interfaces including I2C, SPI, and UART. This surface mount QFN package component operates from 1.8V to 5.5V, with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY2313A-MU technical specifications.
General
| Package/Case | QFN |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height | 0.75mm |
| Interface | I2C, SPI, UART, USART |
| Length | 4mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 2KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of I/Os | 18 |
| Number of I2C Channels | 1 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 128B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AVR® ATtiny |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATTINY2313A-MU Datasheet
Download the complete datasheet for Microchip ATTINY2313A-MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

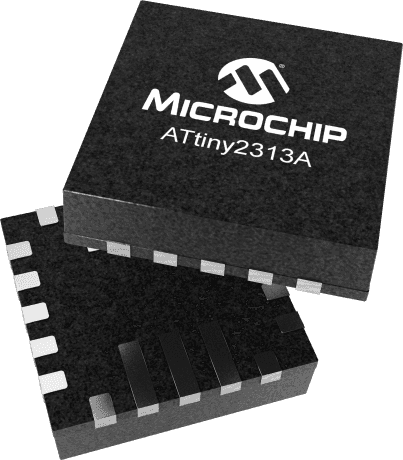

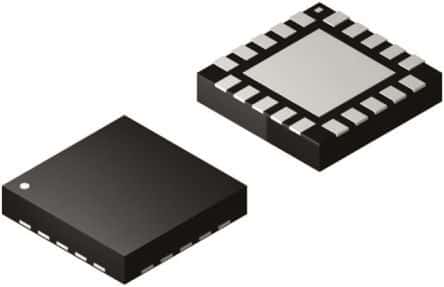

Product Images
