8-bit microcontroller (MCU) featuring 2KB FLASH memory and a 20MHz clock speed. This surface mount device offers 18 I/Os and supports I2C, SPI, and UART/USART interfaces. Operating from 1.8V to 5.5V, it includes an internal oscillator and peripherals such as Brown-out Detect/Reset, POR, WDT, and PWM. Designed for a temperature range of -40°C to 85°C, this RoHS compliant component is available in Tape and Reel packaging.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY2313A-MUR technical specifications.
General
| Package/Case | SOIC |
| Core Architecture | PIC |
| Frequency | 20MHz |
| Interface | I2C, SPI, UART, USART |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 2KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of I/Os | 18 |
| Oscillator Type | Internal |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, WDT, PWM |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATTINY2313A-MUR Datasheet
Download the complete datasheet for Microchip ATTINY2313A-MUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

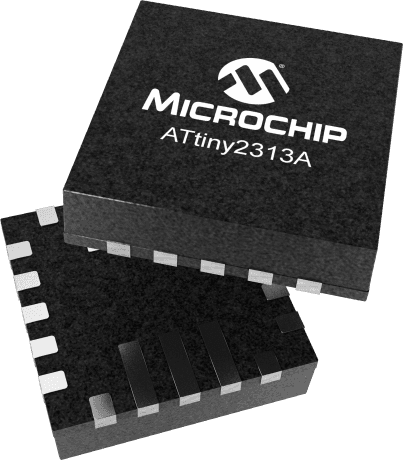

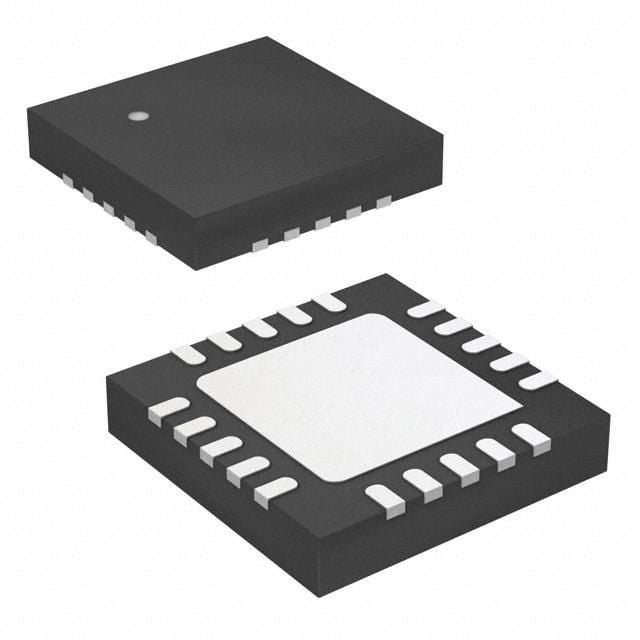

Product Images
