8-bit AVR microcontroller featuring 2KB FLASH memory and 128B RAM. Operates at up to 20MHz with an 8-bit data bus width. Offers 12 programmable I/O pins, 8 ADC channels, 2 PWM channels, 1 I2C, 1 SPI, and 1 UART interface. Includes internal oscillator, watchdog timer, and peripherals like POR and brown-out detect. Supplied in a 20-pin QFN surface mount package, operating between -40°C and 85°C with a supply voltage range of 2.7V to 5.5V.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY24-20MU technical specifications.
General
Access Time
20us
Package/Case
QFN
Core Architecture
AVR
Data Bus Width
8b
Frequency
20MHz
Height
0.75mm
Lead Free
Lead Free
Length
4mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
2KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
12
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
490
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATtiny
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATTINY24-20MU Datasheet
Download the complete datasheet for Microchip ATTINY24-20MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

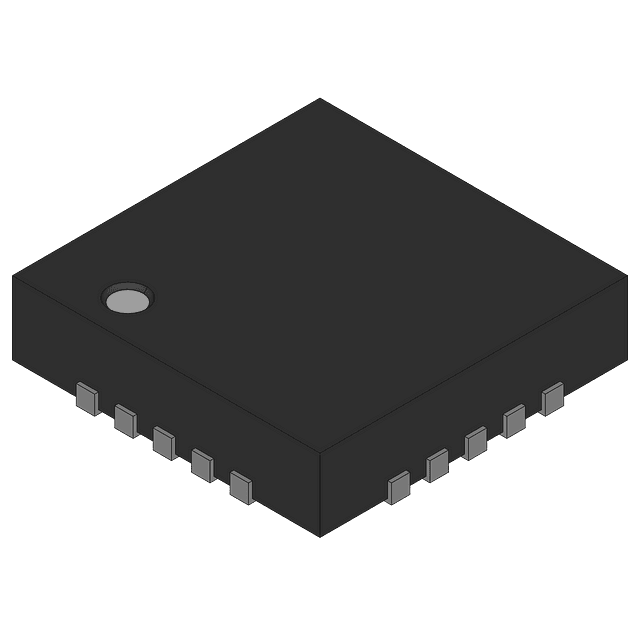

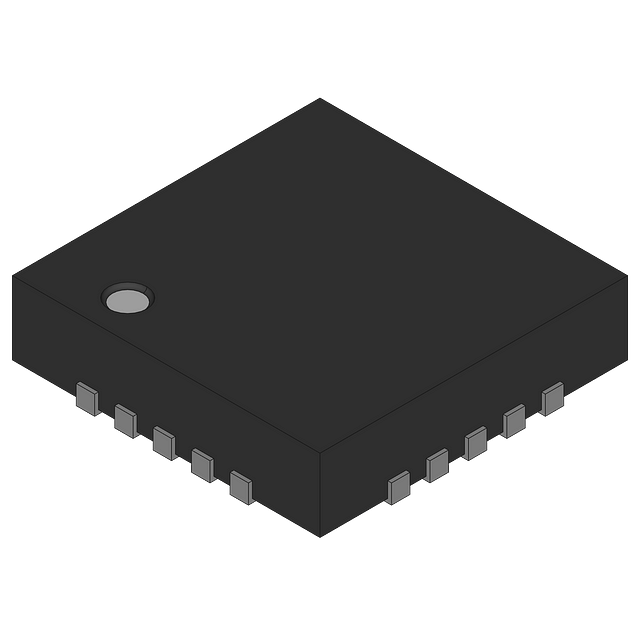

Product Images
