8-bit AVR microcontroller featuring 2KB FLASH memory and 128B RAM. Operates at up to 20MHz with an 8-bit data bus width. Offers 12 I/O pins, 8 ADC channels, 2 PWM channels, and single I2C, SPI, and UART interfaces. Supports through-hole mounting in a DIP package, with an operating temperature range of -40°C to 85°C and supply voltage from 2.7V to 5.5V. Includes integrated peripherals like Brown-out Detect/Reset, POR, WDT, and a temperature sensor.
Frequency20MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip ATTINY24-20PU technical specifications.
General
Access Time
20us
Package/Case
DIP
Core Architecture
AVR
Data Bus Width
8b
Frequency
20MHz
Height
5.334mm
Lead Free
Lead Free
Length
19.69mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
2KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of ADC Channels
8
Number of I/Os
12
Number of I2C Channels
1
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® ATtiny
Width
7.112mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATTINY24-20PU Datasheet
Download the complete datasheet for Microchip ATTINY24-20PU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

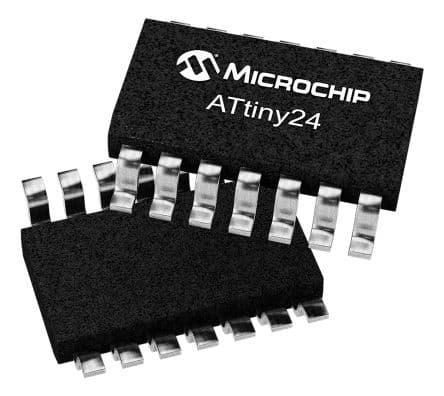

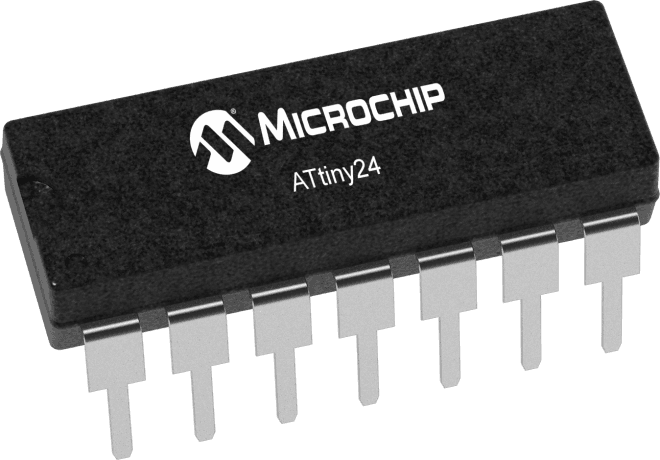

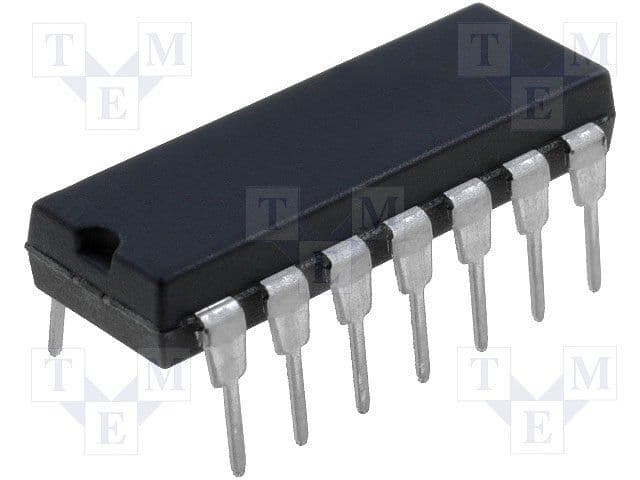

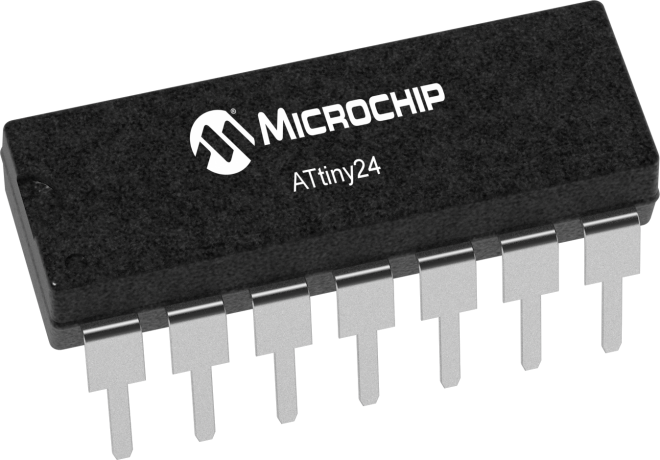

Product Images
