Technical Specifications
Microchip ATTINY85V-15ST technical specifications.
General
| Package/Case | SOIC |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 16MHz |
| Interface | SPI |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of I/Os | 6 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 512B |
| RoHS Compliant | No |
| Series | AVR® ATtiny |
Compliance
| RoHS | Not Compliant |
Datasheet
Microchip ATTINY85V-15ST Datasheet
Download the complete datasheet for Microchip ATTINY85V-15ST to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

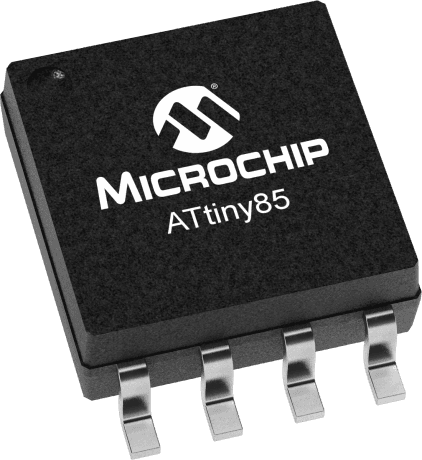

Product Images
