8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 12MHz with an 8-bit data bus width. Includes I2C and SPI interfaces, 6 ADC channels, and 2 PWM channels. Packaged in a 28-pin VQFN for surface mounting, with a supply voltage range of 1.8V to 5.5V and an operating temperature range of -40°C to 85°C.
Frequency12MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY88-MMU technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 12MHz |
| Height | 0.95mm |
| Interface | I2C, SPI |
| Length | 4.05mm |
| Max Frequency | 12MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of ADC Channels | 6 |
| Number of I/Os | 24 |
| Number of I2C Channels | 1 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AVR® ATtiny |
| Width | 4.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATTINY88-MMU Datasheet
Download the complete datasheet for Microchip ATTINY88-MMU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

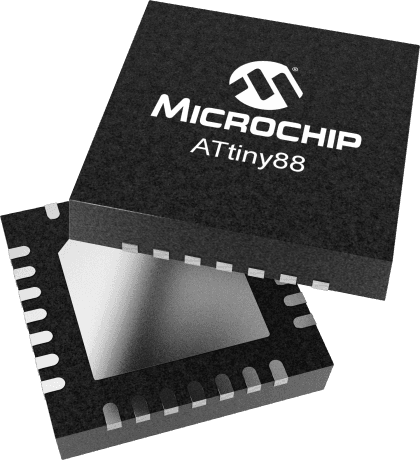

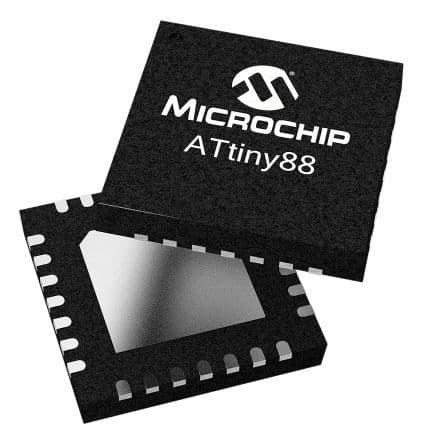

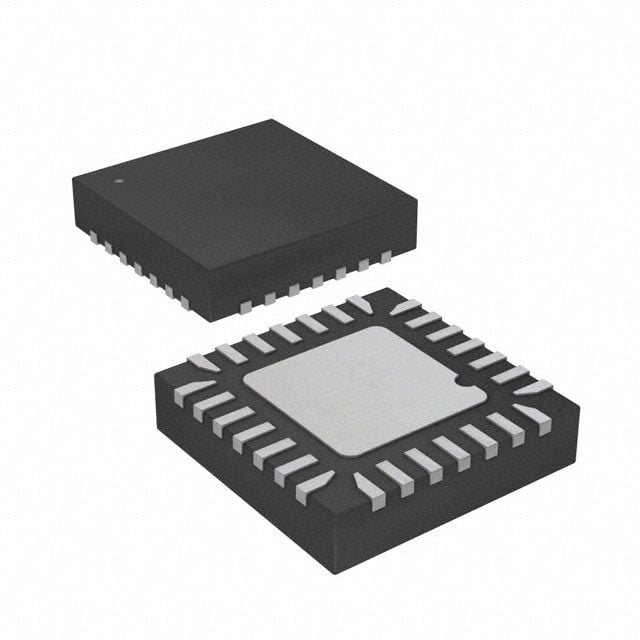

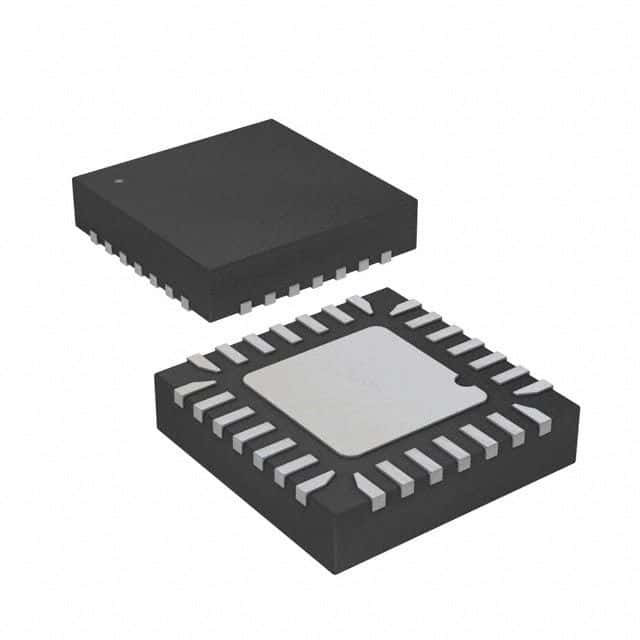

Product Images
