AVR® XMEGA® D3 series 8-bit microcontroller featuring 128KB FLASH memory and 8KB RAM. Operates at up to 32MHz with a 1.6V to 3.6V supply voltage range. Offers 50 I/Os, 16 ADC channels, 18 PWM channels, and 5 timers/counters. Supports I2C, SPI, IrDA, and UART interfaces. Packaged in a 64-TQFP surface mount case, this lead-free component operates from -40°C to 85°C.
Frequency32MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATXMEGA128D3-AU technical specifications.
General
Package/Case
A
Core Architecture
AVR
Density
128KB
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
14.1mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.6V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
50
Number of I2C Channels
2
Number of PWM Channels
18
Number of SPI Channels
2
Number of Timers/Counters
5
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® XMEGA® D3
Termination
SMD/SMT
Width
14.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATXMEGA128D3-AU Datasheet
Download the complete datasheet for Microchip ATXMEGA128D3-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

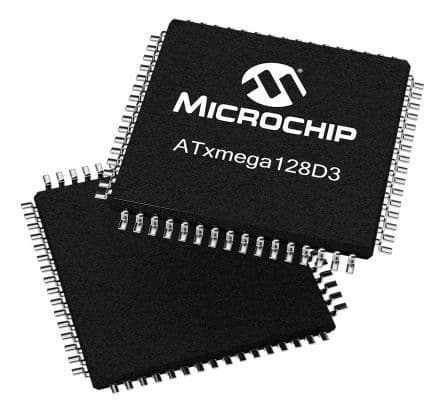

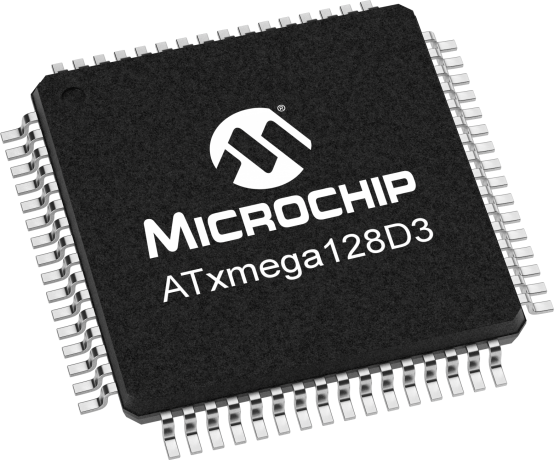

Product Images
