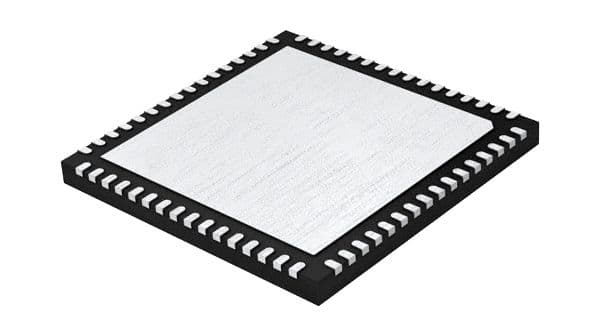

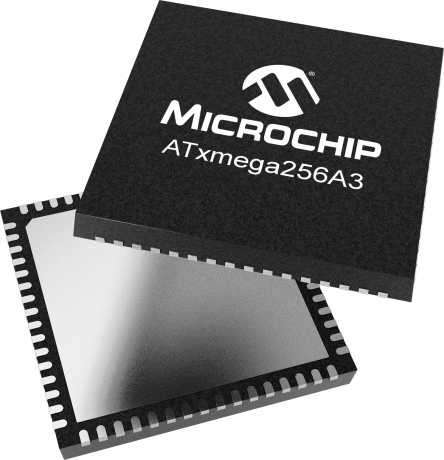

8-bit AVR microcontroller featuring 256KB FLASH memory and 16KB RAM. Operates at up to 32MHz with a 1.6V to 3.6V supply voltage range. Offers 50 I/Os, 22 PWM channels, 7 timers/counters, and multiple communication interfaces including I2C, SPI, UART, and USART. Packaged in a 64-pin QFN (9.1mm x 9.1mm x 0.95mm) for surface mounting. Includes integrated peripherals like DMA, Brown-out Detect, POR, and WDT.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATXMEGA256A3-MH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip ATXMEGA256A3-MH technical specifications.
| Package/Case | QFN |
| Core Architecture | AVR |
| Frequency | 32MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, IrDA, UART, USART |
| Lead Free | Lead Free |
| Length | 9.1mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.6V |
| Mount | Surface Mount |
| Number of ADC Channels | 8 |
| Number of I/Os | 50 |
| Number of I2C Channels | 2 |
| Number of PWM Channels | 22 |
| Number of SPI Channels | 3 |
| Number of Timers/Counters | 7 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 16KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AVR® XMEGA® A3 |
| Watchdog Timer | Yes |
| Width | 9.1mm |
| RoHS | Compliant |
