8-bit AVR MCU with 384KB FLASH memory and 32KB RAM. Features 32MHz clock speed, 50 I/O pins, and 78 programmable I/O. Supports I2C, SPI, USB, IrDA, and UART interfaces. Operates from 1.6V to 3.6V supply voltage, with a temperature range of -40°C to 85°C. Includes 16 ADC channels, 18 PWM channels, and 5 timers/counters. Packaged in a 64-pin QFN for surface mounting.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATXMEGA384C3-MH technical specifications.
General
Package/Case
QFN
Core Architecture
AVR
Data Bus Width
8b
Frequency
32MHz
Height
1mm
Interface
I2C, SPI, USB, IrDA, UART, USART
Lead Free
Lead Free
Length
9mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
384KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.6V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
50
Number of I2C Channels
2
Number of Programmable I/O
78
Number of PWM Channels
18
Number of SPI Channels
2
Number of Timers/Counters
5
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
32KB
RoHS Compliant
Yes
Series
AVR® XMEGA® C3
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATXMEGA384C3-MH Datasheet
Download the complete datasheet for Microchip ATXMEGA384C3-MH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

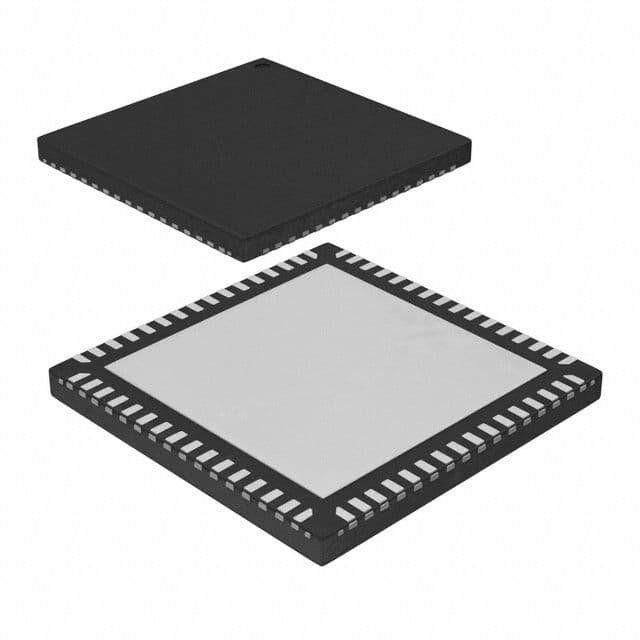

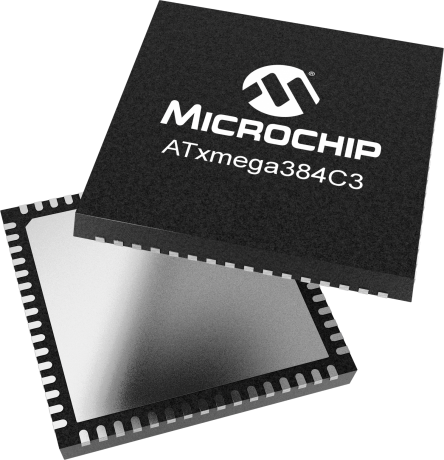

Product Images
