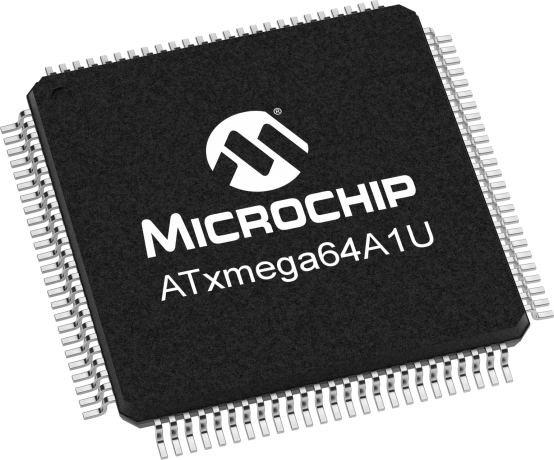

AVR XMEGA A1U series microcontroller featuring a 16-bit AVR core architecture operating at up to 32MHz. This surface-mount device offers 64KB of FLASH memory and 4KB of RAM, with 78 I/O pins. Integrated peripherals include multiple I2C, SPI, and USART interfaces, 16 ADC channels, 24 PWM channels, and a USB controller. Operating voltage ranges from 1.6V to 3.6V, with an operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATXMEGA64A1U-AU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip ATXMEGA64A1U-AU technical specifications.
| Package/Case | TQFP |
| Core Architecture | AVR |
| Data Bus Width | 16b |
| Frequency | 32MHz |
| Height | 1mm |
| Interface | I2C, SPI, IrDA, UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.6V |
| Mount | Surface Mount |
| Number of ADC Channels | 16 |
| Number of I/Os | 78 |
| Number of I2C Channels | 4 |
| Number of PWM Channels | 24 |
| Number of SPI Channels | 4 |
| Number of Timers/Counters | 8 |
| Number of USB Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RAM Size | 4KB |
| RoHS Compliant | Yes |
| Series | AVR® XMEGA® A1U |
| Width | 14mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip ATXMEGA64A1U-AU to view detailed technical specifications.
