LCD segment driver IC featuring parallel and serial interface capabilities. Operates with supply voltages from 3V to 8.5V, supporting 32 segments for LCD displays. Maximum operating frequency is 1.5MHz, with a low operating supply current of 25µA. Packaged in a 44-pin PLCC with tin, matte contact plating, suitable for surface mounting. Rated for operation between -40°C and 85°C, with a maximum power dissipation of 250mW.
Frequency1.5MHz
PackagePLCC
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AY0438-I/L technical specifications.
General
| Package/Case | PLCC |
| Contact Plating | Tin, Matte |
| Display Mode | Segment |
| Display Type | LCD |
| Frequency | 1.5MHz |
| Height | 0.083inch |
| Interface | Parallel, Serial |
| Lead Free | Lead Free |
| Length | 16.66mm |
| Max Frequency | 1.5MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Supply Current | 60uA |
| Max Supply Voltage | 8.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Segments | 32 |
| Operating Supply Current | 25uA |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 60uA |
| Touchscreen | No |
| Width | 0.656inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AY0438-I/L Datasheet
Download the complete datasheet for Microchip AY0438-I/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

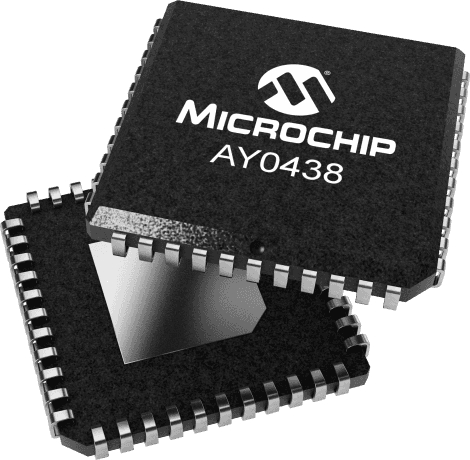

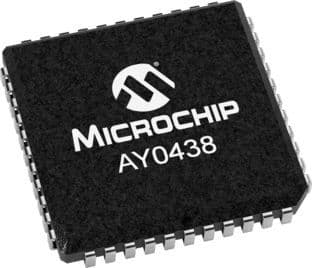

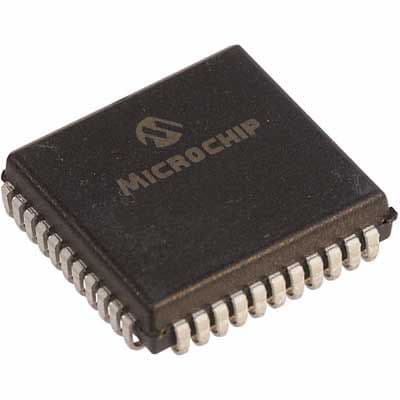

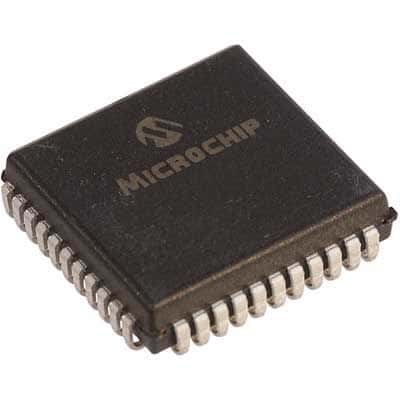

Product Images
