LCD driver IC featuring a parallel and serial interface, supporting up to 32 segments for segment display applications. Operates with supply voltages from 3V to 8.5V, consuming a maximum of 60µA supply current. This component boasts a maximum operating frequency of 1.5MHz and a power dissipation of 250mW, with an operating temperature range of -40°C to 85°C. Packaged in a 40-pin PDIP with tin matte contact plating, it is suitable for through-hole and surface mount configurations.
Frequency1.5MHz
PackagePDIP
Current60uA
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
Microchip AY0438-I/P technical specifications.
General
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Display Mode | Segment |
| Display Type | LCD |
| Frequency | 1.5MHz |
| Height | 0.205inch |
| Interface | Parallel, Serial |
| Lead Free | Lead Free |
| Length | 52.58mm |
| Max Frequency | 1.5MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Supply Current | 60uA |
| Max Supply Voltage | 8.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole, Surface Mount |
| Number of Segments | 32 |
| Operating Supply Current | 25uA |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 60uA |
| Touchscreen | No |
| Width | 0.557inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AY0438-I/P Datasheet
Download the complete datasheet for Microchip AY0438-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

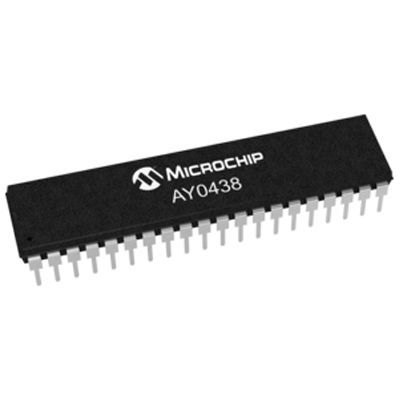

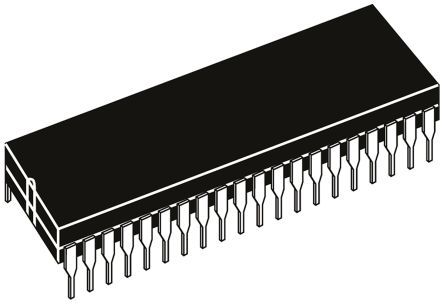

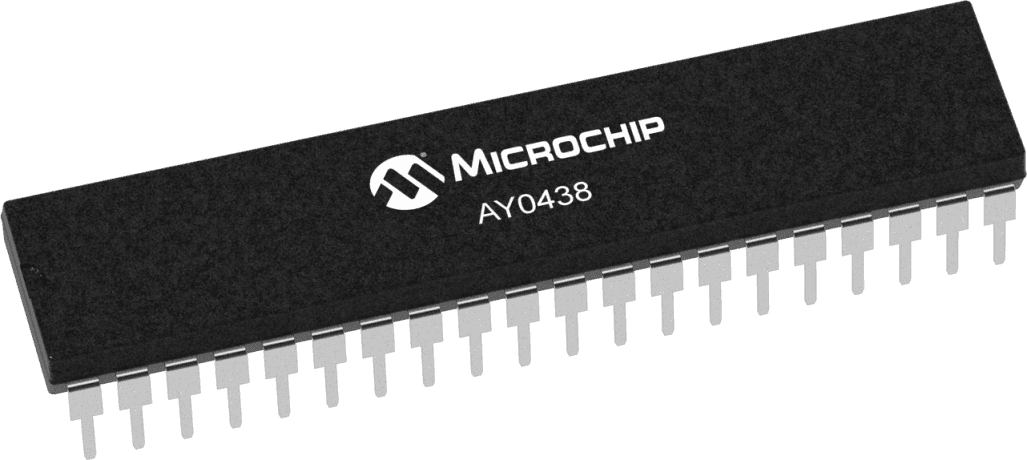

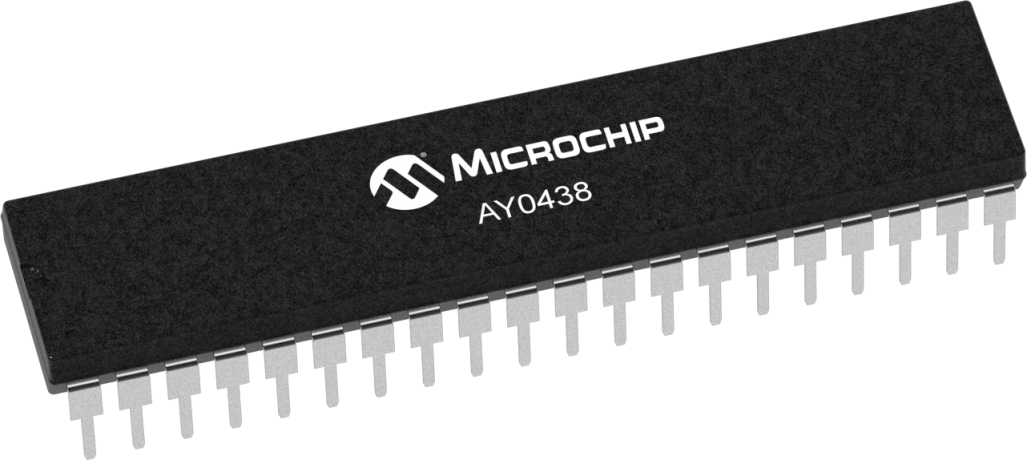

Product Images
