LCD segment driver IC with parallel and serial interface, supporting multiplexed displays with up to 32 segments. Operates from 3V to 8.5V supply, featuring low 25µA operating current and 1.5MHz maximum frequency. Packaged in a 40-pin PDIP with tin-matte contact plating, suitable for through-hole and surface mount applications. RoHS compliant, with a 70°C maximum operating temperature.
Frequency1.5MHz
PackagePDIP
Current60uA
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
Microchip AY0438/P technical specifications.
General
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Display Mode | Segment |
| Display Type | LCD |
| Frequency | 1.5MHz |
| Height | 0.195inch |
| Interface | Parallel, Serial |
| Lead Free | Lead Free |
| Length | 53.21mm |
| Max Frequency | 1.5MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 250mW |
| Max Supply Current | 60uA |
| Max Supply Voltage | 8.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole, Surface Mount |
| Multiplexed Display Capability | Yes |
| Number of Segments | 32 |
| Operating Supply Current | 25uA |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 60uA |
| Touchscreen | No |
| Width | 0.58inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AY0438/P Datasheet
Download the complete datasheet for Microchip AY0438/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

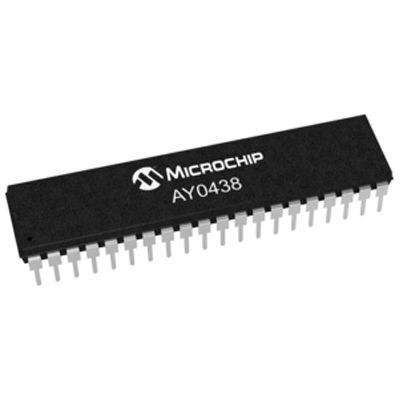

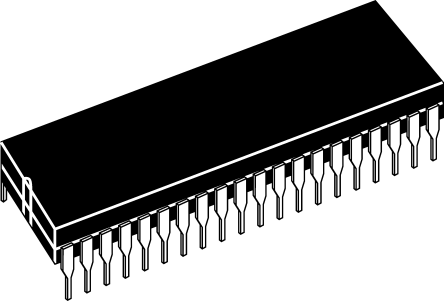

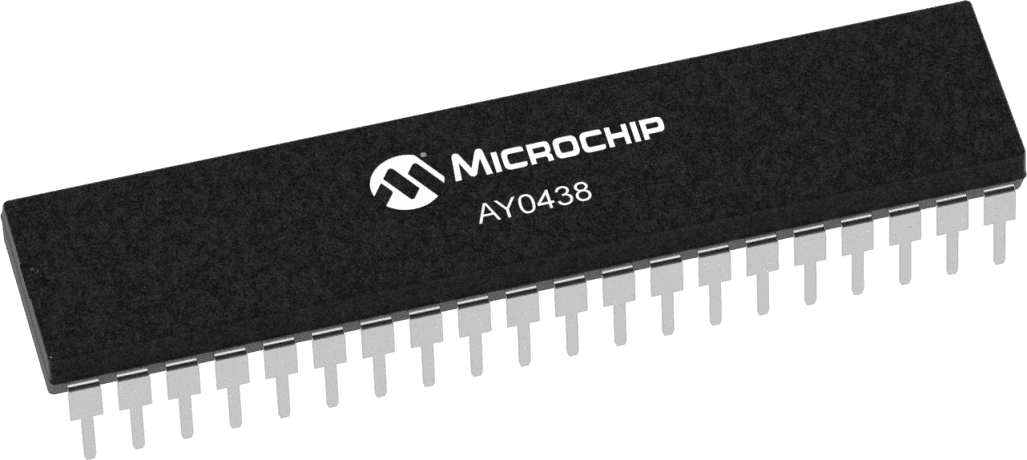

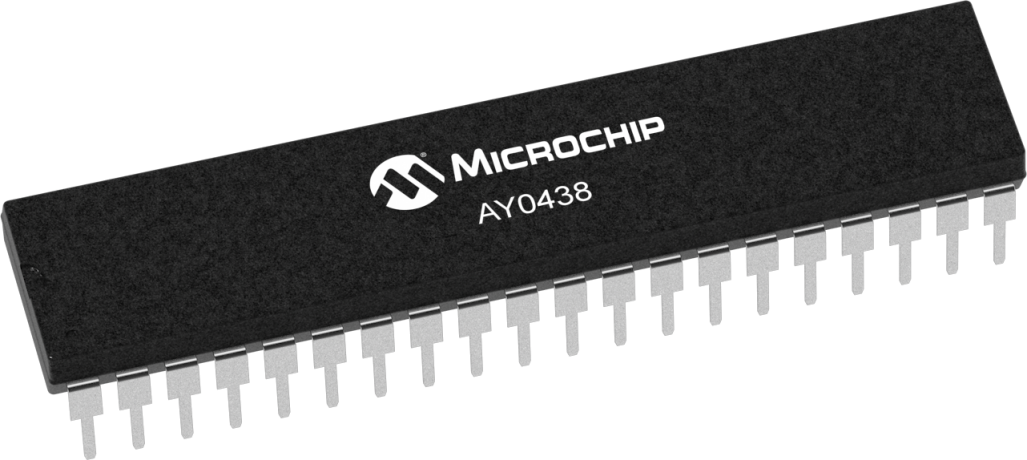

Product Images
