Segment display driver IC for LCDs, featuring a parallel interface and supporting up to 32 segments. Operates from 3V to 8.5V with a maximum supply current of 60µA and a typical operating current of 25µA. This surface mount component is housed in a 44-pin PLCC package and operates at frequencies up to 1.5MHz. It offers a wide operating temperature range from -40°C to 85°C and is RoHS compliant.
Frequency1.5MHz
PackagePLCC
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AY0438T-I/L technical specifications.
General
| Package/Case | PLCC |
| Display Mode | Segment |
| Display Type | LCD |
| Frequency | 1.5MHz |
| Height | 0.158inch |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 16.66mm |
| Max Frequency | 1.5MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Supply Current | 60uA |
| Max Supply Voltage | 8.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Segments | 32 |
| Operating Supply Current | 25uA |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 60uA |
| Width | 0.656inch |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Microchip AY0438T-I/L Datasheet
Download the complete datasheet for Microchip AY0438T-I/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

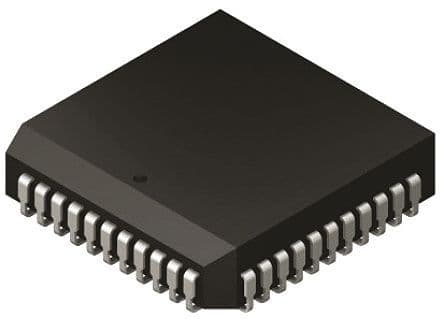

Product Images
