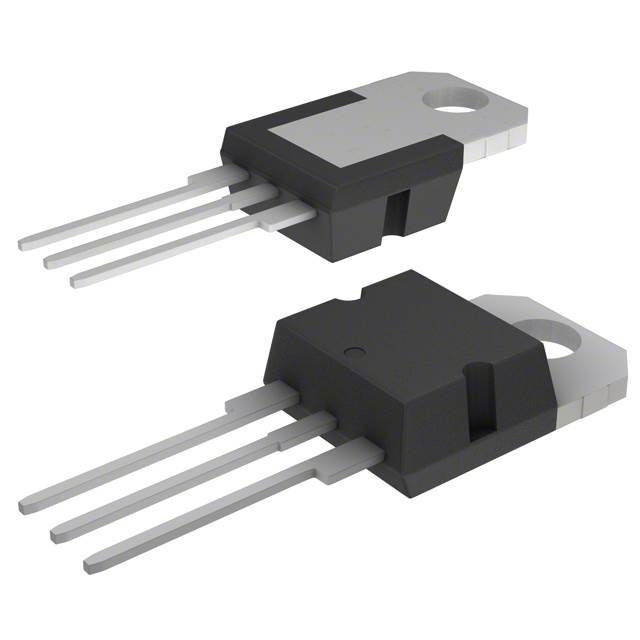

The CL220N5-G is a single-channel driver IC with a maximum input voltage of 220V and a minimum input voltage of 5V. It features a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. The device is packaged in a TO-220 case and is suitable for through-hole mounting. It has a maximum output current of 25mA and a maximum output voltage of 220V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip CL220N5-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Contact Plating | Tin, Matte |
| Current Rating | 20mA |
| Lead Free | Lead Free |
| Max Input Voltage | 220V |
| Min Input Voltage | 5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Output Voltage | 220V |
| Min Output Voltage | 5V |
| Max Supply Current | 20mA |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 20mA |
| Output Voltage | 220V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Weight | 0.08113oz |
| RoHS | Compliant |
