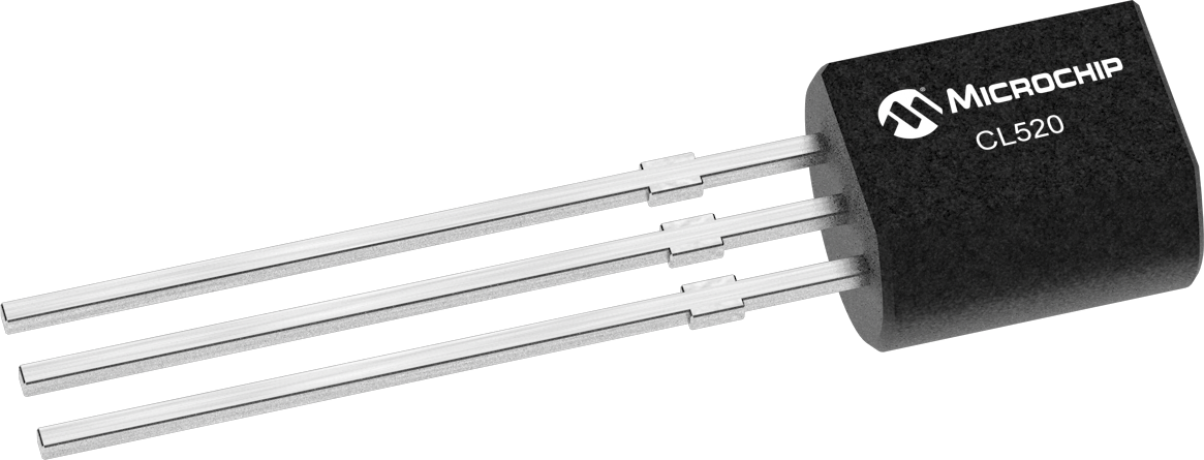

This TO-92 packaged power management IC has a current rating of 20mA and a maximum operating temperature of 125°C. It is lead-free and RoHS compliant, making it suitable for a variety of applications. The device operates within a temperature range of -40°C to 125°C and has a maximum supply voltage of 90V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip CL520N3-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip CL520N3-G technical specifications.
| Package/Case | TO-92 |
| Contact Plating | Tin, Matte |
| Current Rating | 20mA |
| Lead Free | Lead Free |
| Max Input Voltage | 90V |
| Min Input Voltage | 4.75V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 22mA |
| Max Output Voltage | 90V |
| Min Output Voltage | 1V |
| Max Supply Voltage | 90V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 20mA |
| Output Current per Channel | 20mA |
| Output Voltage | 90V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 0.016oz |
| RoHS | Compliant |
