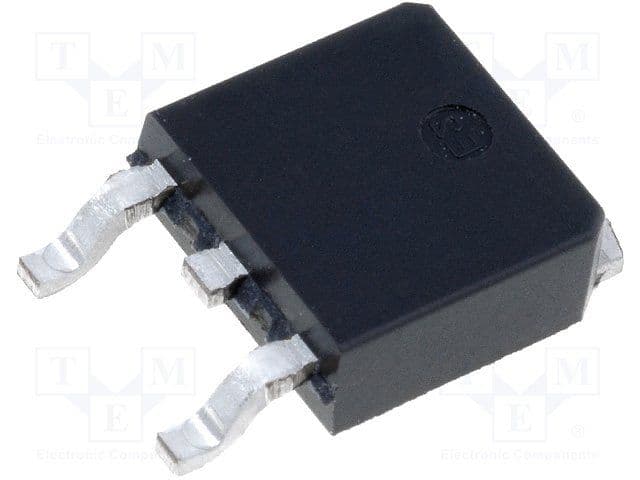

The CL525K4-G is a single-channel driver with a maximum output current of 27.5mA and a maximum output voltage of 90V. It operates over a temperature range of -40°C to 125°C and is packaged in a TO-252-3 surface mount package. The device has a maximum supply current of 25mA and a maximum supply voltage of 90V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip CL525K4-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip CL525K4-G technical specifications.
| Package/Case | TO-252-3 |
| Contact Plating | Tin, Matte |
| High Level Output Current | 25mA |
| Low Level Output Current | 25mA |
| Max Input Voltage | 90V |
| Min Input Voltage | 4.75V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 27.5mA |
| Max Output Voltage | 90V |
| Min Output Voltage | 1V |
| Max Supply Current | 25mA |
| Max Supply Voltage | 90V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 25mA |
| Output Current per Channel | 25mA |
| Output Voltage | 90V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Weight | 0.063493oz |
| RoHS | Compliant |
