High-performance CAN controller IC supporting 5Mbps data rates. Features a parallel and RS-485 interface with a single transceiver. Operates from a 4.5V to 5.5V supply voltage, consuming a maximum of 40mA. Packaged in a 28-pin PLCC for surface mounting, with copper and tin contact plating. Extended operating temperature range from -40°C to 85°C.
PackagePLCC
Current40mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip COM20020I-DZD technical specifications.
General
| Package/Case | PLCC |
| Contact Plating | Copper, Tin |
| Data Rate | 5Mbps |
| Height | 3.43mm |
| Interface | Parallel, RS-485 |
| Lead Free | Lead Free |
| Length | 11.58mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 40mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Transceivers | 1 |
| Operating Supply Current | 20mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 38 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Supply Current | 40mA |
| Width | 10.92mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip COM20020I-DZD Datasheet
Download the complete datasheet for Microchip COM20020I-DZD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

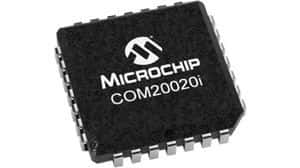

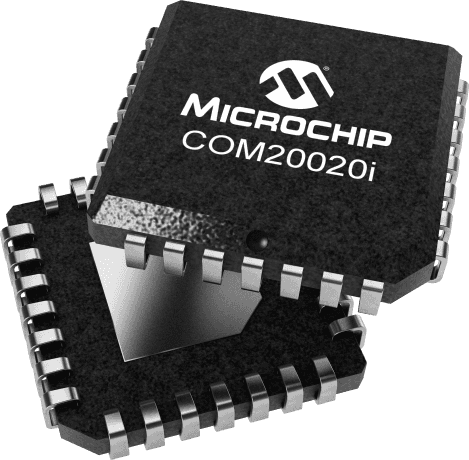

Product Images
