N-channel small signal JFET in a SOT-89 package, featuring a 300V drain-source breakdown voltage and 200mA continuous drain current. This surface-mount device offers a low 12 Ohm drain-source resistance (Rds On Max) and a 10ns turn-on delay. Operating across a -55°C to 150°C temperature range, it supports a maximum power dissipation of 1.6W.
PackageSOT-89
MountingSurface Mount
PolarityN-CHANNEL
Power1.6W
Quick Jump:
Technical Specifications
Microchip DN2530N8-G technical specifications.
General
Package/Case
SOT-89
Continuous Drain Current (ID)
200mA
Drain to Source Breakdown Voltage
300V
Drain to Source Resistance
12R
Drain to Source Voltage (Vdss)
300V
Fall Time
15ns
Gate to Source Voltage (Vgs)
20V
Height
1.6mm
Input Capacitance
300pF
Lead Free
Lead Free
Length
4.6mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Package Quantity
2000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
1.6W
Radiation Hardening
No
Rds On Max
12R
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Turn-Off Delay Time
15ns
Turn-On Delay Time
10ns
Weight
0.001862oz
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip DN2530N8-G Datasheet
Download the complete datasheet for Microchip DN2530N8-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

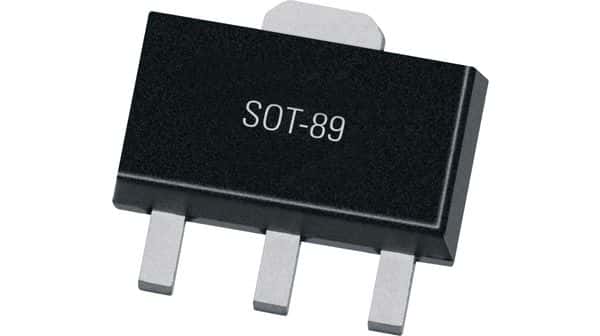

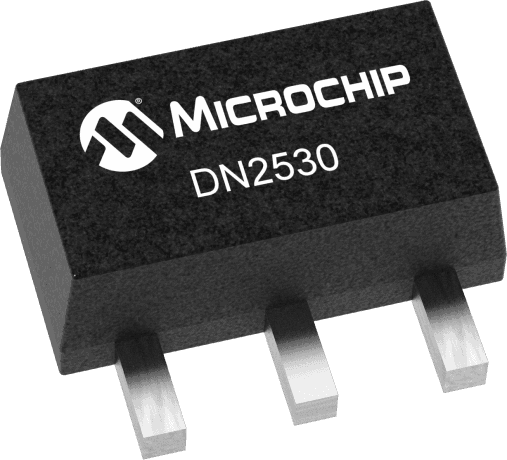

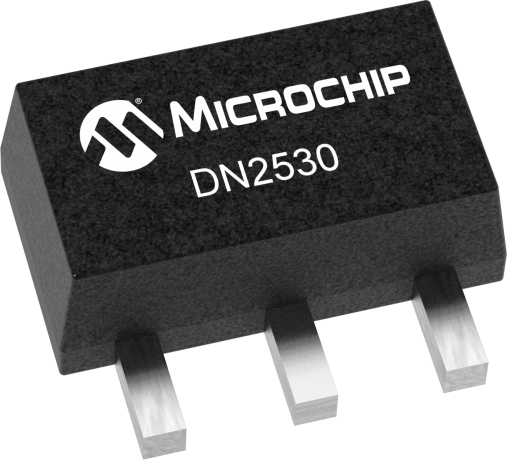

Product Images
